Flashing White High Intensity LED Obstruction Light with ICAO FAA Standard
Advantages
1.Strong efficiency transmission.
2.International-advanced Big power and Precision integrated chip LED with high brightness and service life of light source reaching 100000hours.
3.The circuit of the light has overload protection whose lightning proof ability is In
7.5KA/5 times, IMAX 15KA so that the light is suitable to harsh environment.
4.Strong anticorrosion, anti seisnic protection and UV protection.
5.Baked advance aluminum alloy Material.
6.Resistant to heavy rain or storms.
7.Automatically changing light intensity, day/twilight/night intensity operating.
8.low power consumption and low cost of ownership.
Datasheet: AH-HI-A High-intensity Type A L856 Aviation Obstru...
Detail Description:
The products are one Single light with photocell, so it can work all day andautomatically change light intensity according to ambient brightness by photocell. When ambient brightness is less than 50cd/m2,light intensity is 2,000cd(±25%);When ambient brightness is between 50cd/m2 and
500cd/m2,light intensity is 20,000cd(±25%) ;When ambient brightness is morethan 500cd/m2,light intensity is 200,000cd(±25%). All control signal wire of light is paralleled to make several lights flash synchronously.
Application:
This product is mainly used on the top of Television transmitting tower, High-rise building, High chimney, cable stayed bridge,communications Tower, Cooling tower, etc which height is over 150meter so that it can play a warning role in potentially hazardous obstructions to air traffic flashing white safety light.
Specifications:
SPECIFICATIONS | AH-HI/A High-intensity Type A Aviation Obstruction Light |
Light Characteristics | |
Light Source | LED |
Available Colors | White |
Intensity(cd) |
-2,000cd (Night) -20,000cd (Twilight) -200,000cd(Daytime) |
Horizontal Output(degrees) | 120 |
Vertical Divergence(degrees) | 3 to 7 |
Reflector Type | Fresnel Lens |
Flash Characteristics | Flashing mode(40-60times/minute) |
Operation Mode | Dusk-to-dawn Automatically as standard. |
LED Life Experience(hours) | >100,000 |
Electrical Characteristics | |
Operating Voltage | AC220V (option voltage,eg.AC120V,AC110V,DC48V) |
Power(W) | 100 |
Circuit Protection | Integrated |
Temperature Range(℃) | -40~60 |
Physical Characteristics | |
Body Material | High borosilicate glass |
Base Material | Die-casting aluminum |
Mounting | 420 by 240 by Φ12 |
Height(mm) | 445 |
Width(mm) | 280 |
Depth(mm) | 320 |
Mass(kg) | 27 |
Product Life Expectancy | 5 years plus |
Environmental Factors | |
Humidity | 10%-95% |
Wind Speed | 80m/s |
Waterproof | IP65 |
Compliance | |
ICAO |
High-intensity Type A Aviation Obstruction Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3 |
FAA | High-intensity Type A FAA L-856 |
Dimension Drawing

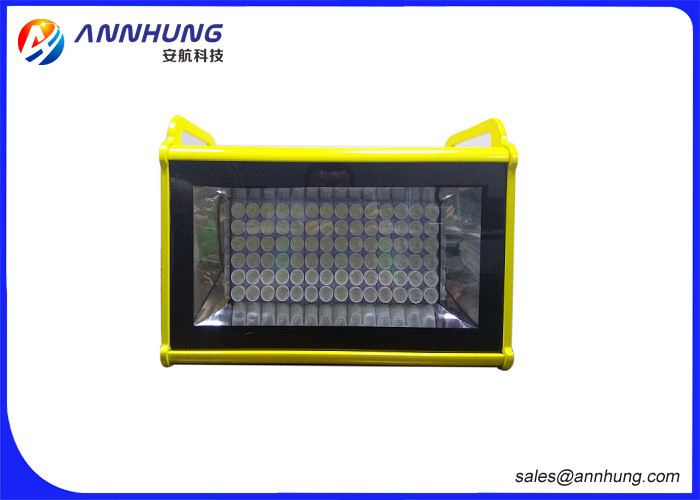

Product Picture
