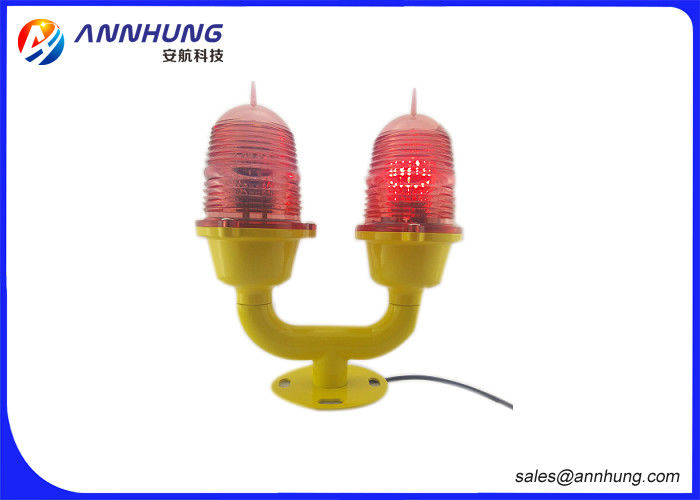

Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized
  • Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized
  • Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized
  • Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized

Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized

Place of Origin Guangdong, China
Brand Name Annhung
Certification ICAO
Model Number AH-LI/D
Product Details
Mass:
2kg
Color Of Light:
Red
Dimension:
258 By 136 By 320
Intensity:
≥ 32.5cd(Option 10cd,50cd,80cd,100cd)
Standard:
ICAO Annex 14, FAA L810
Type Name:
Double Aviation Obstruction Light
Certification:
CE, RoHS, UL
Working Mode:
Flashing( 20times/minute As Standard) Or Steady Adjustable
Highlight:

tower warning lights

,

airplane warning lights

Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Negotiable
Packaging Details
paper carton 1 piece/box
Delivery Time
Shipped in 15 days after payment
Payment Terms
T/T, Western Union, Money Gram,
Supply Ability
1000Pieces/Month
Product Description



Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized





Features



•G3/4 threaded bottom entry for easy mounting

•Prewired cable makes wiring job easier

•Available in both single and double type

•Super-bright OSRAM LEDs reliable light source ensures long lifespan
•Optimized optical Lens design provides excellent optic distribution
•Internal LED driver and constant current regulator make the light illuminate steadily
•Encapsulated and sealed power module provides more reliability and better protection
•Extremely low power consumption
•Excellent shock and vibration resistant
•GE polycarbonate dome, UV-stabilized
•Aluminum base with powder painted, corrosion-resistant



Datasheet: AH-LI-D Low-intensity L810 Double Aviation Obstruc...

Detail Description:



low intensity red obstruction light is designed based on LED technology, for marking structures outline for warning aircraft during nighttime. Complying with ICAO low intensity type A & B and FAA L-810. OL32 is used for structures less than 45m or intermediate levels combined with medium intensity lights.



Application:



Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized 0



Specifications:



SPECIFICATIONS AH-LI/D Low-intensity Double Aviation Obstruction Light
Light Characteristics
Light Source LED
Available Colors Red
Intensity(cd) ≥32.5(option 10cd, 50cd, 80cd,100cd)
Horizontal Output(degrees) 360
Vertical Divergence(degrees) ≥10
Reflector Type Fresnel Lens
Flash Characteristics Flashing( 20times/minute as standard) or Steady adjustable
Operation Mode Dusk-to-dawn Automatically as standard. 24hours operation as option.
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage AC220V (option voltage, eg. AC120V, AC110V, DC48V)
Power(W) 4
Circuit Protection Integrated
Temperature Range(℃) -40~70
Physical Characteristics
Body Material Polycarbonate
Base Material Die-casting aluminum
Mounting 3/4inches or 1 inches
Height(mm) 258
Width(mm) 136
Depth(mm) 320
Mass(kg) 2
Product Life Expectancy 5 years plus
Environmental Factors
Humidity 10%-95%
Wind Speed 80m/s
Waterproof IP65
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth0 edition July 2004, table 6.3
FAA L-810 Steady-burning Red Aviation Obstruction Light







Dimension Drawing



Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized 1





Product Picture



Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized 2



Double LED Aviation Obstruction Light ICAO Anne X 14 UV - Stabilized 3
