ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
  • ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
  • ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
  • ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
  • ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
  • ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
  • ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan

ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan

Place of Origin Guagndong,China
Brand Name ANNHUNG
Certification ICAO,CE
Model Number AH-LI-B2
Product Details
Color Temperature:
Red
IP Rating:
IP66
Body Material:
Aluminum Alloy
Light Source:
LED
Beam Angle:
360°
Input Voltage:
DC(48V) & AC(110-240VAC)
Luminous Flux:
100 Lm
Luminous Efficiency:
100 Lm/w
Lifespan:
100000 Hours
Product Weight:
2 Kg
Operating Voltage:
DC(48VDC) & AC(110-240VAC)
Power:
5 W
Overall Size:
254×90×210 Mm
Flash Rate:
Steady-burning
Intensity:
32.5
Highlight:

ICAO Compliant Aviation Obstruction Light

,

IP66 Waterproof Aircraft Warning Light

,

100000 Hours Lifespan LED Obstruction Light

Payment & Shipping Terms
Minimum Order Quantity
1
Price
150
Packaging Details
Carton
Delivery Time
3-15days
Payment Terms
T/T,Western Union
Supply Ability
2000pcs Per month
Product Description

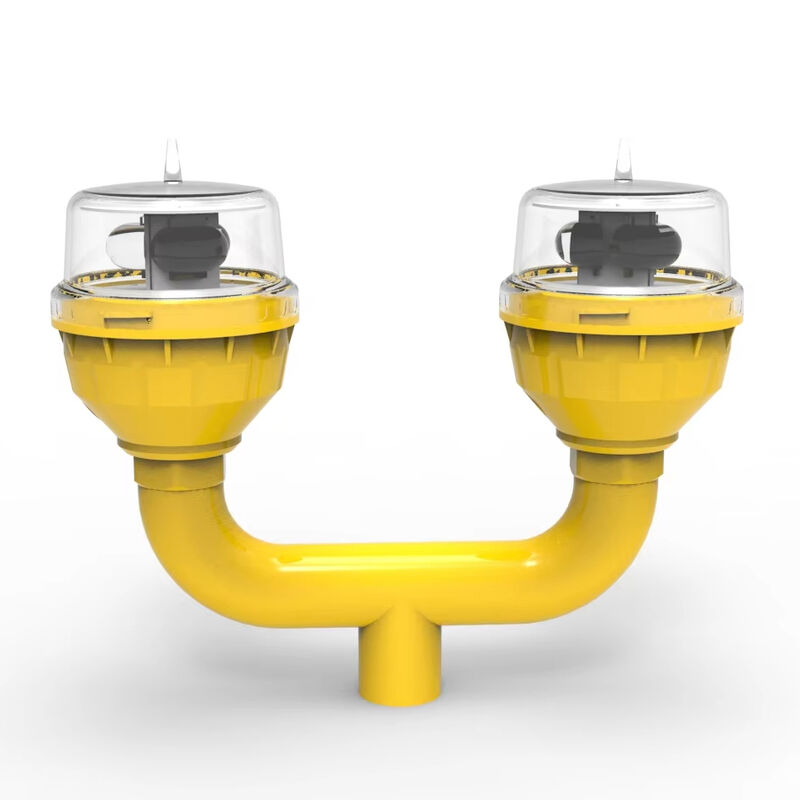

AH-LI-B2 Double LED Low-Intensity Aviation Obstruction Light
ICAO compliant, IP66 waterproof aviation obstruction light with 360° beam angle and dusk-to-dawn operation for obstacles up to 45 meters in height.
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan 0 ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan 1 ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan 2
Product Overview
This LED Low-intensity Double light is a steady burning (flashing adjustable) aviation obstruction light designed for marking the top of obstacles that do not exceed 45 meters in height. Main-standby mode ensures continuous obstacle marking even if one light fails.
Compliance & Certifications
  • ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A/B/E Obstruction Light
  • FAA L-810 compliant
Electrical Specifications
  • CREE LED technology for long-term brightness reliability
  • Dual power supply: DC (48V) & AC (110-240VAC)
  • Compatible with 48VDC/110VAC/240VAC input
Physical Construction
  • Bird deterrent spike on top for protection
  • Unique PMMA lens design for optimal light convergence and transparency
  • High translucency anti-UV polycarbonate cover (3-5 years without yellowing)
  • UV protection powder coated bright yellow base for enhanced visibility and durability
  • Die-cast aluminum base with strong corrosion resistance
  • Shock and vibration protection
  • 3/4-inch thread hole for easy pole installation
  • Screw-free cover fixation - simple twist mechanism
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan 3
System Design Features
  • Built-in photocell for automatic dusk-to-dawn operation (activates below 50cd/m² background luminance)
  • Surge and lightning protection
  • Main-standby mode with automatic failover for continuous operation
Optional Features
  • Infrared LED for pilot NVG (Night Vision Goggle) compatibility
  • Alarm contact output (Dry contact - NO COM NC) for power failure and LED failure alerts
  • Solar power system integration
Applications
Ideal for marking high-rise buildings, chimneys, telecom/GSM/microwave/TV towers, high poles, tower cranes, wind turbines, and other structures under 45 meters in height.
Technical Specifications
Warranty2 Years
TypeAviation Obstruction Lights
Lifespan100,000 hours
Product Weight2 kg
Input VoltageDC (48V) & AC (110-240VAC)
Lamp Luminous Flux100 lm
Color TemperatureRed
Beam Angle360°
IP RatingIP66
Emitting ColorRed
Lamp Body MaterialAluminum Alloy
Light SourceLED
StandardICAO Annex 14th
Intensity32.5 cd
Flash RateSteady-burning
Operation ModeDusk-to-dawn Automatic
Overall Size254*90*210 mm
Power5W
Packaging & Delivery
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan 4 ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan 5
Application Examples
ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan 6 ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan 7 ICAO Compliant IP66 Waterproof LED Aviation Obstruction Light with 100000 Hours Lifespan 8
