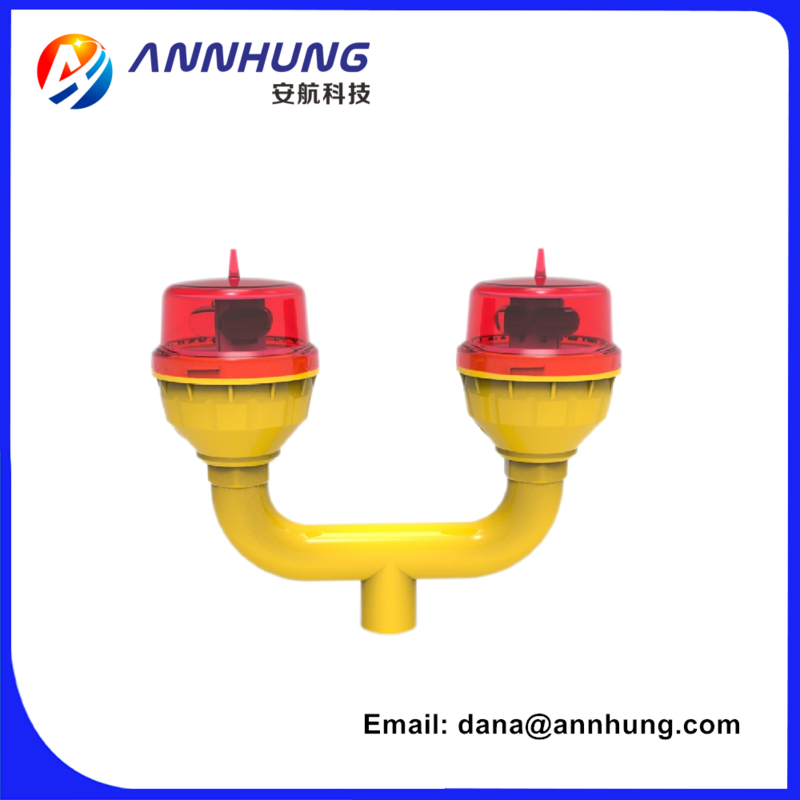

ANNHUNG AH-LI-B2 LED L810 Double Aviation Light 32.5cd 360° Output
  • ANNHUNG AH-LI-B2 LED L810 Double Aviation Light 32.5cd 360° Output
  • ANNHUNG AH-LI-B2 LED L810 Double Aviation Light 32.5cd 360° Output
  • ANNHUNG AH-LI-B2 LED L810 Double Aviation Light 32.5cd 360° Output
ANNHUNG AH-LI-B2 LED L810 Double Aviation Light 32.5cd 360° Output

ANNHUNG AH-LI-B2 LED L810 Double Aviation Light 32.5cd 360° Output

Brand Name ANNHUNG
Certification CE, ICAO
Model Number AH-LI-B2
Document AH-LI-B2 LED Low-intensity ...ht.pdf
Product Details
Weight(kg):
1.5
LED Life Experience(hours):
>100,000
Flash Characteristics:
Steady-burning/20/30/60 Adjustable
Body Material:
Polycarbonate
Horizontal Output(degrees):
360
Power(W):
2.5
Light Source:
LED
Dimension(mm):
Φ90×130
Working Mode:
Main & Stand By(other Modes Are Optional)
Operation Mode:
Dusk-to-dawn Automatically As Standard. 24hours Operation As Option.
Highlight:

ANNHUNG LED aviation light 32.5cd

,

double aviation obstruction light 360° output

,

L810 LED light with warranty

Payment & Shipping Terms
Minimum Order Quantity
1
Price
120usd
Packaging Details
Carton
Delivery Time
3-15days
Payment Terms
T/T,Western Union
Supply Ability
3000pcs per month
Product Description
AH-LI-B2 LED Low-intensity L810 Double Aviation Obstruction Light Main-standby mode 32.5cd
Product Description

This LED Low-intensity Double light is a steady burning (20/30/60fpm adjustable) aviation obstruction light designed for marking the top of obstacles that do not exceed 45 meters in height. The main-standby mode ensures continuous obstacle marking even if one light fails.

Key Features
  • Product Name: LED Low-intensity L810 Double Aviation Obstruction Light
  • Light Source: LED
  • Available Colors: Red
  • Horizontal Output: 360 degrees
  • LED Life Expectancy: >100,000 hours
  • Operating Voltage: DC (12V, 48VDC) or AC (110-240VAC) or others
Technical Specifications
Attribute Value
Weight (kg) 1.5
Power (W) 2.5
Body Material Polycarbonate
Mounting 3/4 Inch Pipe Thread (Standard), 1inch (Option)
Horizontal Output (degrees) 360
Light Source LED
Vertical Divergence (degrees) ≥10
Available Colors Red
Intensity (candela) ≥32.5cd (type B), others optional (10cd, 100cd, etc)
Dimension (mm) Φ90×130
Applications

The AH-LI-B2 low-intensity light is suitable for use on high-rise buildings, chimneys, marking towers (telecom, GSM, microwave & TV), high poles, tower cranes, wind turbines, and other structures when the height is lower than 45m.

Customization Options
  • Brand Name: ANNHUNG
  • Model Number: AH-LI-B2
  • Place Of Origin: China
  • Base Material: Die-casting Aluminum
  • Power (W): 2.5
  • Flash Characteristics: Steady-burning/20/30/60 Adjustable
  • LED Life Expectancy: >100,000 hours
  • Horizontal Output: 360 degrees
Packaging & Shipping

Each aeronautical obstruction light is securely packaged in a sturdy box with protective padding to prevent damage during transit. We partner with reliable carriers for timely delivery and provide tracking information upon order processing.

Frequently Asked Questions
What is the brand name of this Aeronautical Obstruction Light product?
The brand name is ANNHUNG.
What is the model number of this Aeronautical Obstruction Light?
The model number is AH-LI-B2.
Where is this product manufactured?
This product is manufactured in China.
What type of obstruction light is the AH-LI-B2 model?
The AH-LI-B2 is a high-intensity LED obstruction light suitable for aeronautical applications.
Are there any specific certifications associated with this product?
Yes, this product is typically certified to meet aviation industry standards like ICAO.
