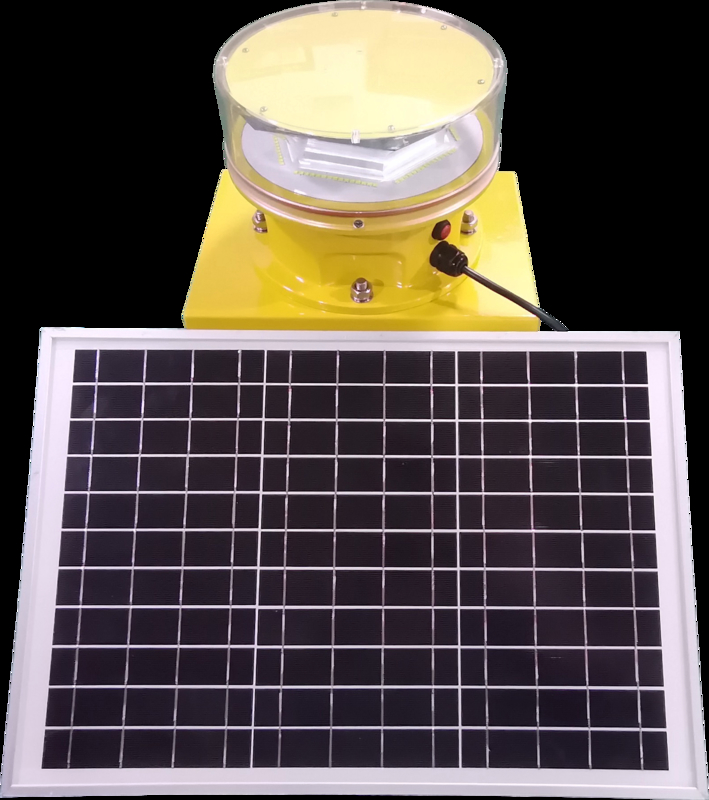

Solar Aviation Obstruction Light 360 Degree 2000-20000cd LED
Product Details
| Horizontal Output(degrees): | 360 | Vertical Divergence(degrees): | 3 |
|---|---|---|---|
| Nominal Voltage (V): | 12V | Operation Mode: | Dusk-to-dawn Automatically As Standard. |
| Available Colors: | Red(Other Color Is Optional) | Battery Type: | Lithium Ion Battery |
| LED Life Experience(hours): | >100,000 | Product Life Expectancy: | ＞10years (Battery 3-5years) |
| Highlight |
solar aviation obstruction light 360 degree,LED aviation obstruction light 20000cd,solar LED light with warranty |
||
Product Description
| Attribute | Value |
|---|---|
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 3 |
| Nominal Voltage (V) | 12V |
| Operation Mode | Dusk-to-dawn Automatically As Standard |
| Available Colors | Red (Other Color Is Optional) |
| Battery type | Lithium Ion Battery |
| LED Life Experience(hours) | >100,000 |
| Product Life Expectancy | >10years (Battery 3-5years) |
This LED Medium-intensity Aviation Obstruction Light flashing white color is designed for marking the top of obstacles with heights exceeding 105 meters.
Featuring ultra high intensity CREE LED light source for extended lifespan and optimal performance. The self-designed reflector converges light efficiently, meeting standard light intensity requirements with minimal power consumption.
| Parameter | Value |
|---|---|
| Light Source | LED |
| Vertical Divergence(degrees) | 3 |
| Flash Characteristics | 20-60FPM - Type B (factory Setting: 20FPM) |
| Horizontal Output(degrees) | 360 |
| LED Life Experience(hours) | >100,000 |
| Intensity(cd) | ≥2000cd(Night), ≥20000cd(Daytime) |
| Available Colors | White (Other Color Is Optional) |
| Battery type | Lithium Ion Battery |
| Nominal Voltage (V) | 12V |
| Operation Mode | 24hours operation, 2 different modes |
The AH-MI-A2 medium-intensity light is designed for installation on:
- High-rise buildings
- Industrial chimneys
- Communication towers (Telecom, GSM, Microwave & TV)
- High poles
- Tower cranes
- Wind turbines
Ideal for obstacles with heights between 105-150 meters, typically used in conjunction with low/medium intensity lights installed at lower positions.
Our Solar Aviation Obstruction Light comes with comprehensive technical support and services to ensure proper installation, maintenance, and troubleshooting. Our expert team is available to assist with any inquiries or issues, committed to delivering high-quality support for optimal performance and reliability.
Product Packaging: Each unit is carefully packaged in sturdy cardboard boxes with protective bubble wrap to prevent damage during transit.
Shipping Information: We utilize reliable courier services to ensure timely and secure delivery of all products.
