TLOF Solar Airfield Light Taxiway Edge FATO Aiming Point Steady
Product Details
| Light Source: | LED | Available Colors: | Red, Green, Yellow, White, Blue |
|---|---|---|---|
| Horizontal Output(degrees): | 360 | Vertical Divergence(degrees): | ≥8 |
| Flash Characteristics: | Steady(Flashing Mode Is Optional) | Operation Mode: | 24hours Working After Switched ON |
| Highlight |
TLOF Solar Airfield Taxiway Edge Light,FATO Aiming Point Light,Steady TLOF Solar Airfield Light |
||
Product Description

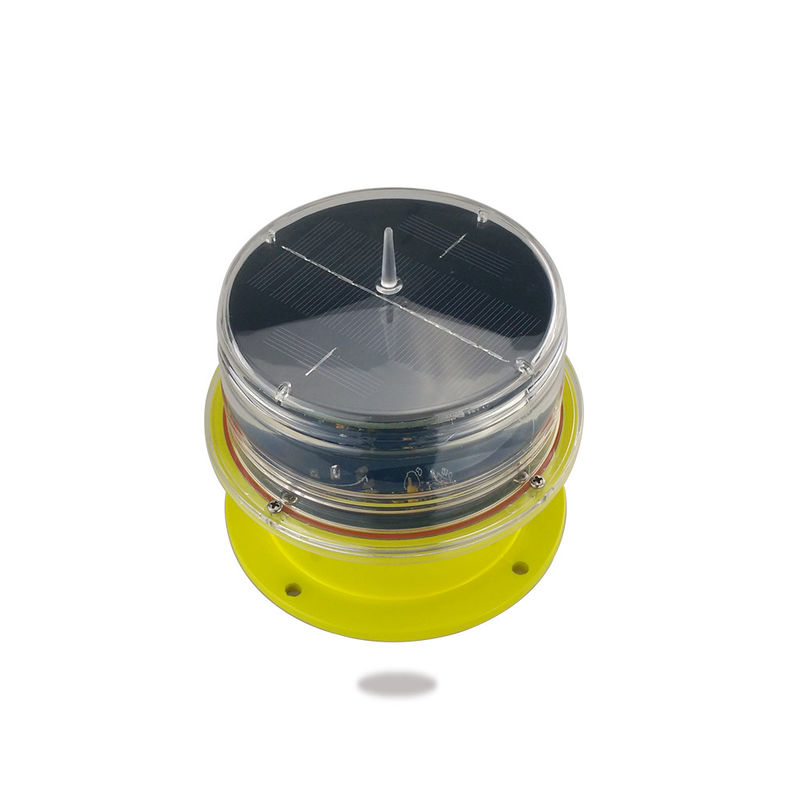

AH-SA-B Solar Airfield Light
AH-SA-B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA-B.
Fragile coupling need to be paid separately if needed.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
Bird deterrent spike
Powder coated die casting aluminum base
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
ON/OFF button interface located under base
Optional
External battery charger for 110-240vac charging
Wireless remote control
Carry case for batch of lights
NVG - compatible infrared (IR) LED
Installation bracket
Application
Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting
Helipad taxiway
Emergency operations
| Description | Parameter |
|
Lamb Body Material |
Aluminum Alloy |
|
Base Material |
Powder-coated Die-casting aluminum |
|
Mounting |
140×140×M6 |
|
Dimension(mm) |
162×162×160 |
|
Weight(kg) |
1 |
|
Product Life Expectancy |
≥10 years |
|
Ambient Temperature(℃) |
-55~70 |
|
Humidity |
-0~100 |
|
Wind Speed |
80m/s |
|
Waterproof |
IP68 |
|
FAA |
AC 150/5390-2B Heliport Design Guide |
