Quality White 2500cd Solar Heliport Beacon Lighting Morse Code H 24hours Operation factory
>

White 2500cd Solar Heliport Beacon Lighting Morse Code H 24hours Operation

Brand Name: ANNHUNG
Model Number: AH-SA-HB
Place of Origin: China
Certification: ICAO CE
Minimum Order Quantity: 1

Product Details


Light Source: LED Available Colors: White
Intensity(cd): ≥2500cd Horizontal Output(degrees): 360
Vertical Divergence(degrees): ≥8 Flash Characteristics: Morse Code “H”
Highlight

Solar Heliport Beacon Lighting

,

2500cd Solar Heliport Beacon Lighting

,

24hours operation Solar Beacon Lighting

Product Description

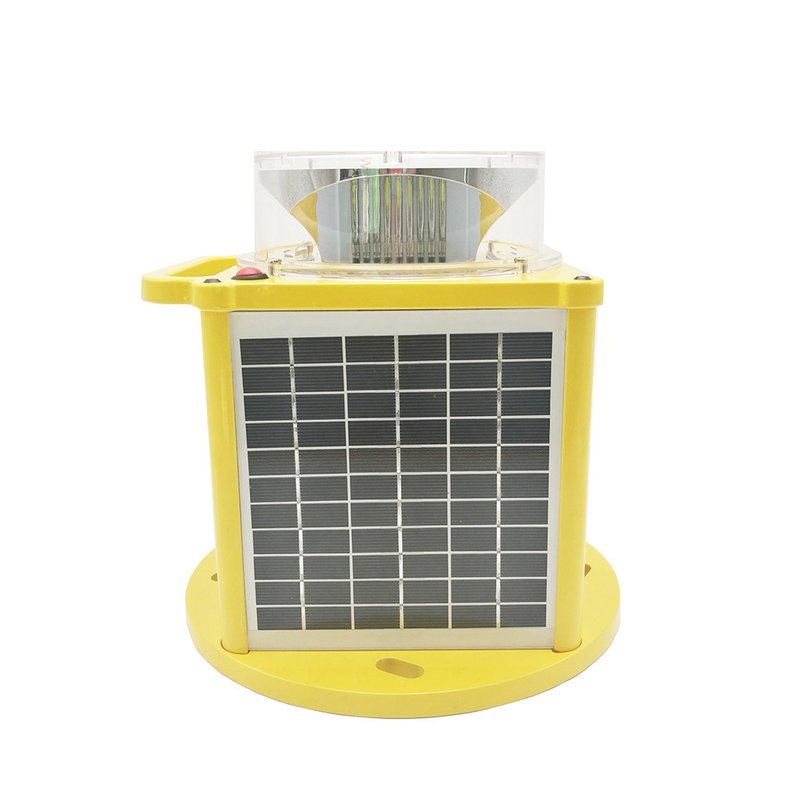

AH-SA-HB LED Solar Heliport Beacon
A heliport beacon should be provided at a heliport where long-range visual guidance is considered necessary and is not provided by other visual means; or identification of the heliport is difficult due to surrounding lights.
AH-SA-HB flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ), built-in solar panel and battery, no wiring job is needed.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.2
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
PC housing,UV resistance, shockproof and corrosion proof.
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
ON/OFF button interface for easy local control
Optional
External charger
Wireless remote control
Carry case for batch of lights
NVG - compatible infrared (IR) LED
Installation bracket
Application
Helipad/Heliport/Helideck/Airport
Description Parameter

Body Material

UV protected Polycarbonate

Base Material

Powder-coated Die-casting aluminum

Mounting

200×200×12

Dimension(mm)

250×250×250

Weight(kg)

4.5

Product Life Expectancy

≥10 years

Ambient Temperature(℃)

-35~80

Humidity

-10~90

Wind Speed

80m/s

Waterproof

IP68

FAA

FAA AC 150/5390-2B Heliport Design Guide

White 2500cd Solar Heliport Beacon Lighting Morse Code H 24hours Operation

Company Information

Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.


All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).

Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf

Product Highlights

AH-SA-HB LED Solar Heliport Beacon A heliport beacon should be provided at a heliport where long-range visual guidance is considered necessary and is not provided by other visual means; or identification of the heliport is difficult due to surrounding lights. AH-SA-HB flashes white color 4 times/0...
