AH-HP-H Helideck Circle-H Light Green / Yellow Steady Burning 48VDC
Product Details
| Light Source: | LED | Available Colors: | Green, Yellow (others Are Optional) |
|---|---|---|---|
| Flash Characteristics: | Steady Burning | Operation Mode: | 24hours Operation |
| Operating Voltage: | DC(24V, 48VDC) Or AC(110-240VAC) | Power(W): | 3 |
| Highlight |
Helideck Circle-H Light,Steady burning Helideck Light,48VDC Helideck Light |
||
Product Description

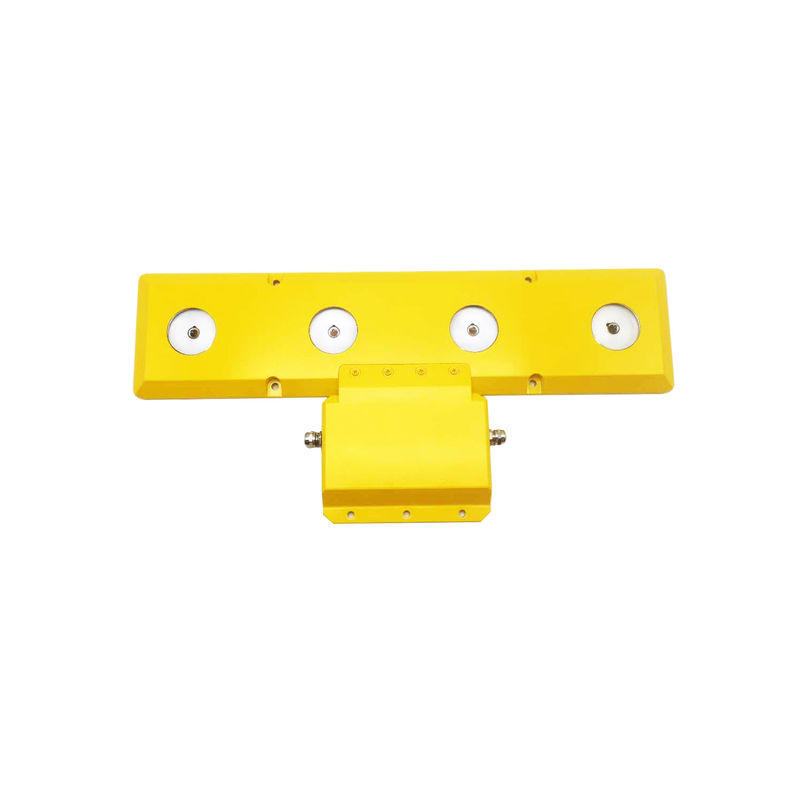

AH-HP-H Helideck Circle-H Light
Helideck Circle-H Light is for the heliport identification marking “H” and the circle, The design of thickness (＜25MM ) make it easily installed and suitable for all kinds of heliport.
Compliance
ICAO Annex 14 Volume I, Appendix I Nov. 2016, figure A1-1-Colors for aeronautical Ground lights
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in DC24V, AC(110-240VAC), DC48V
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
Integrated cable connection
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Customized cables with vulcanized cable termination protection and captive connection screws
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Application
Helipad/Heliport
Drilling rigs
Platforms
| Description | Parameter |
|
Operating Voltage |
DC(12V, 24V, 36V, 48V) or AC(110-240VAC) |
|
Power(W) |
3 |
|
Circuit Protection |
Integrated |
|
Body Material |
UV protected Polycarbonate |
|
Base Material |
Powder-coated Die-casting aluminum |
|
Dimension(mm) |
235×500×23 |
|
Weight(kg) |
3.83 |
|
Product Life Expectancy |
≥10 years |
|
Ambient Temperature(℃) |
-25~70 |
|
Humidity |
-10~90 |
|
Wind Speed |
80m/s |
|
Waterproof |
IP68 |
|
ICAO |
ICAO Annex 14 Volume I , Appendix I Nov. 2016, figure A1-1-Colors for aeronautical ground lights |
