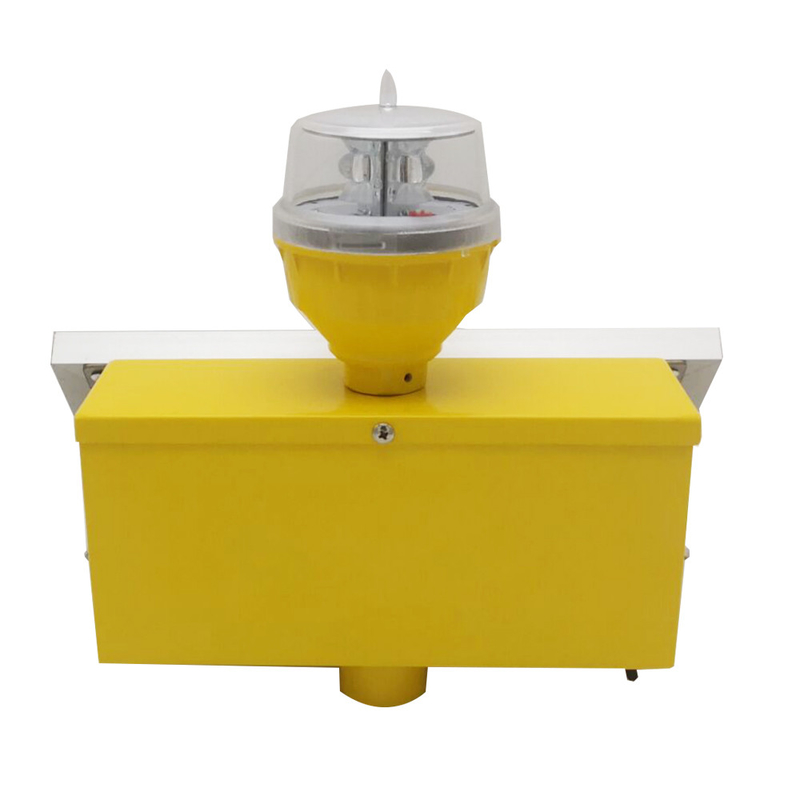

AH-LI-B2 is a self-contained obstruction light which consist of solar panel, battery and lamp. There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure it could get the most sunlight in different area.
It is designed for marking top of obstacle that do not exceed 45 meters in height.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6-1, 6-2 Low Intensity Type A / B /E Obstruction Light
FAA L-810
Features
Electrical
3 high power CREE LED, make sure LED keep bright while use
Physical
With bird needle to prevent bird drop
UV & vibrations protected polycarbonate lens for converging light
Powder coated die casting aluminum base, light fastness, resist snow and rain
Battery box made of corrosion resistant 304 stainless steel
Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
Solar panel vertical degree is adjustable
System design
Solar panel as sensor(Photo diode) for day & night working mode (dusk to dawn mode)
ON/OFF button under base make local control easy
Steady/Flashing(20fpm) adjustable switch available
Solar panel angel is adjustable
Surge and lightning protection
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Stainless steel needle strips for solar panel
Application
AH-LS-A1 solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter
