Quality Medium Intensity LED Aircraft Warning Lights Obstruction flashing factory
>

Medium Intensity LED Aircraft Warning Lights Obstruction flashing

Brand Name: ANNHUNG
Model Number: AH-MI-A2
Place of Origin: China
Certification: ICAO CE
Minimum Order Quantity: 1

Product Details


Light Source: CREE High Intensity LED Available Colors: White
Intensity(cd): ≥2000cd(Night), ≥20000cd(Daytime) Horizontal Output(degrees): 360
Vertical Divergence(degrees): 3 Flash Characteristics: 20-60FPM
Body Material: UV Protected Polycarbonate Base Material: Powder-coated Die-casting Aluminum
Highlight

Medium Intensity LED Aircraft Warning Lights

,

20FPM LED Aircraft Warning Lights

,

CREE LED Obstruction Light Aviation

Product Description

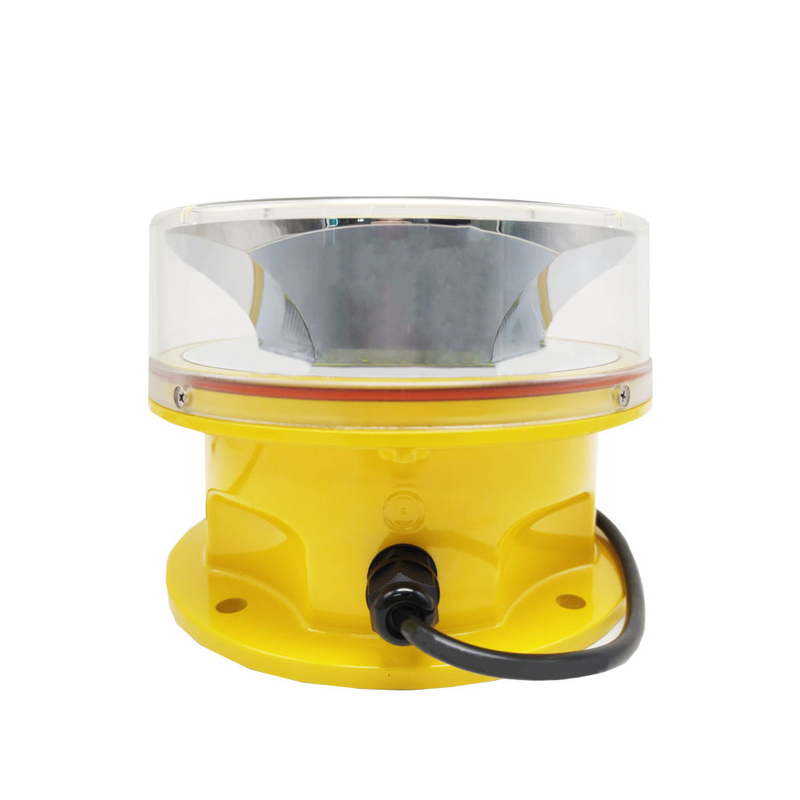

Medium Intensity LED Aircraft Warning Lights Obstruction Flashing



AH-MI-A2 LED Medium-intensity Aviation Obstruction Light





This LED Medium-intensity Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is more than 105meters.

Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.



Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A Obstruction Light

FAA L-865

CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards



Features

Electrical

CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp

Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)



Physical

Unique design and UV protected polycarbonate reflector for converging light

UV protection Powder coated bright yellow color base make better visibility

Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection



System design

Built-in photocell for day/night operation(dusk to dawn operation)

Surge and lightning protection

GPS devide inside for flashing synchronously



Optional

Dry contact Alarm output for remote monitoring

Infrared LED for pilot using NVG

IOT Monitoring



Application

AH-MI-A2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 105-150meter, and most time work with low /medium intensity lights installed on the lower place.
