AC220V Helipad Landing Lights LED Precision Approach Path Indicator
Product Details
| Light Source: | LED | Available Colors: | Red/White |
|---|---|---|---|
| Azimuthr Range(degree): | 8° | Working Mode: | Steady Burning |
| Operation Mode: | 24hours Operation | LED Life Experience(hours): | >100,000 |
| Product Life Expectancy: | 10 Years Plus | Waterproof: | IP66 |
| Highlight |
Red White Helipad Landing Lights,PAPI Helipad Landing Lights,AC220V Precision Approach Path Indicator |
||
Product Description
AC220V Helipad Landing Lights LED Precision Approach Path Indicator

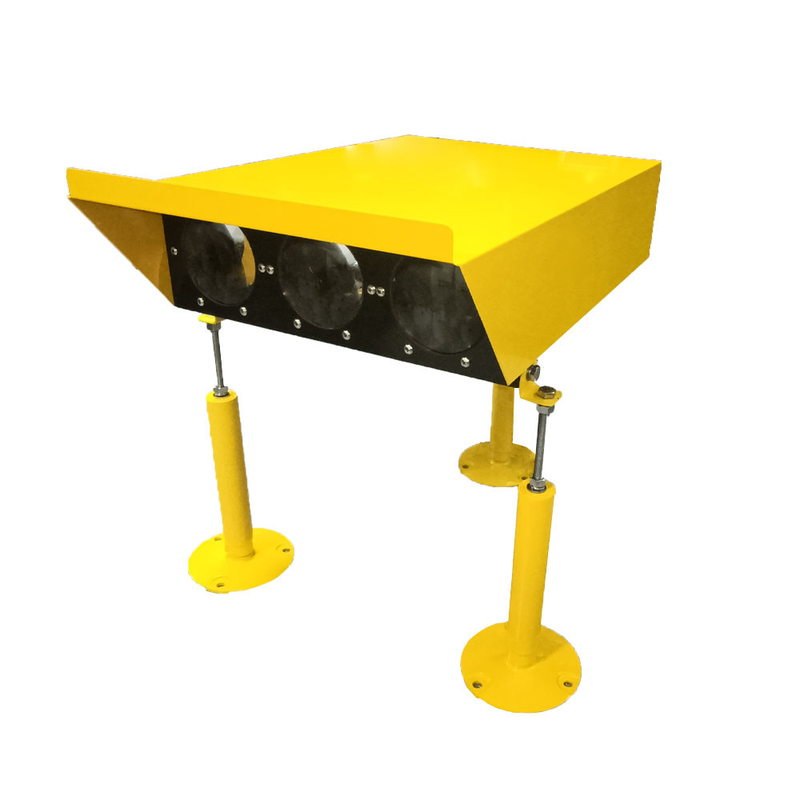

AH-HP-PAPI LED Precision Approach Path Indicator
The LED Precision Approach Path Indicator (PAPI) is used to guide aircraft to approach the runway at an appropriate altitude. It is specially designed to accommodate the helicopter's steep angles of descent and deliberate speeds.
There are two Colors which to show two wide horizontal beams in different colored light. And it is projected in fan shaped array into the incoming flight pattern.
Solar power system is optional for PAPI.
PAPI Visual Indication:
Compliance
ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1
FAA AC 150/5390-2B Heliport Design Guide
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110, 240VAC), DC48V or solar powered
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Housing material is stainless steel which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling reduce the secondary damage to helicopters effectively
Optional
Clinometer
Solar power system
Application
Permanent, Temporary, Emergency Helipad/Airport/Helideck
OFFSHORE/ ONSHORE USAGE
| Description | Parameter |
|
Operating Voltage |
AC220V |
|
Power(W) |
70W*3 |
|
Circuit Protection |
Integrated |
|
Body Material |
Stainless steel 304 |
|
Base Material |
Die casting aluminum & stainless steel 304 |
|
Mounting |
140x M10 |
|
Dimension(mm) |
557x740x464 |
|
Weight(kg) |
18 |
|
Product Life Expectancy |
≥10 years |
|
Ambient Temperature(℃) |
-35~80 |
|
Humidity |
10~90% |
|
Wind Speed |
80m/s |
|
Waterproof |
IP65 |
|
Options Available |
Solar Power system |
