Helipad Landing Lights
>
|
|
| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | ICAO CE |
| Model Number | AH-HP-I-FATO(L) |

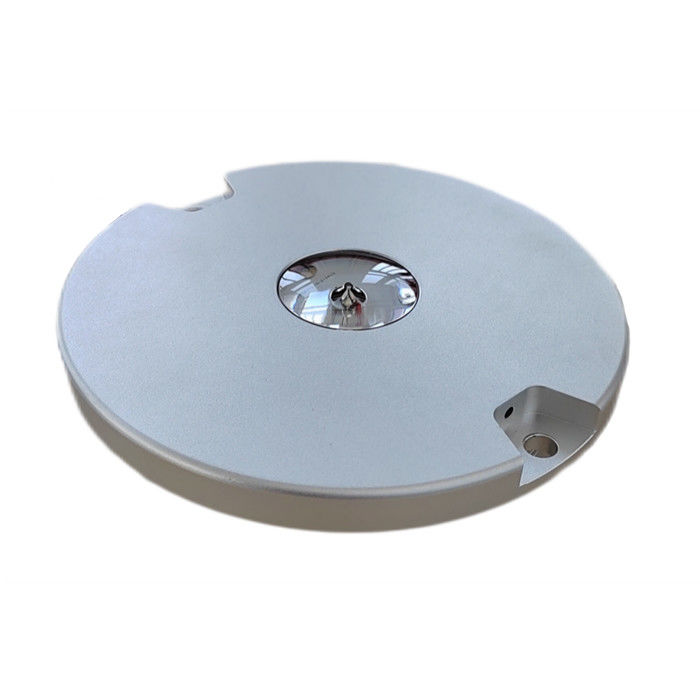

White Final Approach LED Heliport Perimeter Light Steady Burning
AH-HP-I-FATO(L) LED Heliport Final Approach and Take-off Area Lighting
The objective of a FATO lighting system for onshore surface-level heliports is to provide to the pilot operating at night an indication of the shape, location and extent of the FATO. FATO lights shall be placed along the edges of the FATO and be fixed omnidirectional lights showing white.
8inch International standard mounting for aerodrome inset light.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.7
FAA AC 150/5390-2B Heliport Design Guide
CAAC MH 5001-2013 Aerodrome technical standards
CAAC MH 5013-2014 Technical Standards of Civil Heliports
Features
Electrical
Ultra high intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V
Physical
Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by color powder coasted which have good corrosion protection and load bearing.
IP68 waterproof ensure light work fine underground
Optional
Infrared LED for pilot using NVG (Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Light intensity adjustable
Application
Surface-level heliport
Elevated heliport or helideck
| Description | Parameter |
|
Operating Voltage |
C48V and AC(110-240VAC), DC12V |
|
Power(W) |
≤8.5W |
|
Body Material |
Die-casting aluminum |
|
Mounting |
θ220×100 |
|
Dimension(mm) |
θ220×100-M10*2 |
|
Weight(kg) |
4 |
|
Product Life Expectancy |
≥10 years |
|
Ambient Temperature(℃) |
-55~70 |
|
Humidity |
0~100% |
|
Wind Speed |
80m/s |
|
Waterproof |
IP68 |
|
ICAO |
ICAO Annex 14 Volume ǁ Heliports 5.3 |
