ICAO Standard LED Helipad Landing Lights Green White Yellow Blue Red
Product Details
| Light Source: | CREE Ultra High Intensity LED | Available Colors: | Green, White, Yellow, Blue, Red |
|---|---|---|---|
| Intensity(cd): | ICAO Standard, Refer To Photometric Table | Horizontal Degree(°): | Omni Direction (360°) |
| Vertical Degree(°): | ICAO Specification | Flash Characteristics: | Steady Burning |
| Operation Mode: | 24hours Operation | LED Life Experience(hours): | >100,000 |
| Highlight |
ICAO Standard Helipad Landing Lights,CREE LED Helipad Landing Lights,CREE LED Heliport Inset Light |
||
Product Description
ICAO Standard LED Helipad Landing Lights Green White Yellow Blue Red

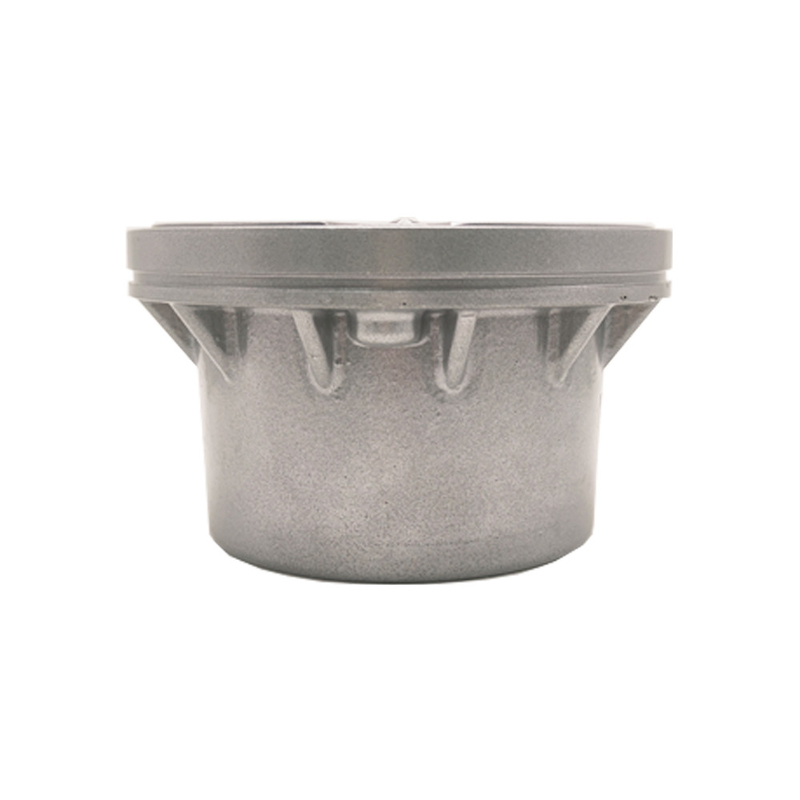

AH-HP-I Serial LED Heliport Inset Light
Heliport Inset light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
It could be used as Aiming point light, perimeter light of FATO (Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway, Flight path alignment guidance lighting, etc. The emitting color is green or yellow or white or blue.
8inch International standard mounting for aerodrome inset light.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAAC MH 5001-2013 Aerodrome technical standards
CAAC MH 5013-2014 Technical Standards of Civil Heliports
Features
Electrical
Ultra high intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V
Physical
Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by color powder coasted which have good corrosion protection and load bearing.
IP68 waterproof ensure light work fine underground
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Light intensity adjustable
Solar Power System
Application
Helipad/Heliport TLOF areas
Heliport FATO ares
Helipad Runway
Helipad taxiway
Aiming point light
| Description | Parameter |
|
Operating Voltage |
C48V and AC(110-240VAC), DC12V |
|
Power(W) |
≤8.5W |
|
Body Material |
Die-casting aluminum |
|
Mounting |
θ220×100 |
|
Dimension(mm) |
θ220×100-M10*2 |
|
Weight(kg) |
4 |
|
Product Life Expectancy |
≥10 years |
|
Ambient Temperature(℃) |
-55~70 |
|
Humidity |
0~100% |
|
Wind Speed |
80m/s |
|
Waterproof |
IP68 |
|
ICAO |
ICAO Annex 14 Volume ǁ Heliports 5.3 |
