AH-HP-E Serial LED Heliport Elevated Lights ICAO Standard Steady Burning
Product Details
| Light Source: | Ultra High Intensity LED | Available Colors: | Green, Yellow, White, Red, Blue, IR |
|---|---|---|---|
| Intensity(cd): | ICAO Standard | Horizontal Output(degrees): | 360 |
| Operation Mode: | 24hours Operation | LED Life Experience(hours）: | >100,000 |
| Highlight |
icao standard heliport elevated lights,steady burning heliport elevated lights |
||
Product Description

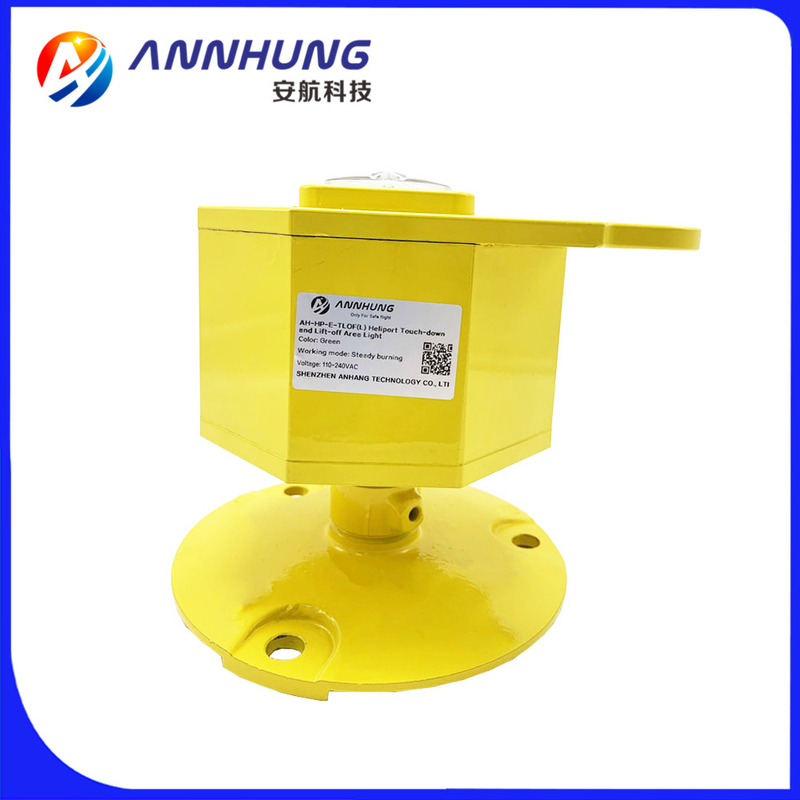

AH-HP-E Serial LED Heliport-Helideck Elevated Light
AH-HP-E Serial Heliport Elevated lights should not exceed a height of 25cm for Surface-level and Elevated heliports, not exceed a height of 15 cm for helideck. There is a fragile coupling in the base connection for heliport so if aircraft hit the light by accident, the base will break immediately to avoid more damage.
The lights could be used as FATO light, TLOF lights, Taxiway lights.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
High-intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC) and DC48V, DC12V and other voltage is optional
LED power supply board includes short circuit and open circuit protection
Physical
Unique designed Glass lens for converging light
Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Light intensity adjustable
Application
Surface-level and Elevated heliports
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Operating Voltage |
DC48V and AC(110-240VAC), DC12V |
| Power(W) |
5 |
| Mounting |
140×140×θ12 |
| Dimension(mm) |
190×165×166 |
| Weight(kg) | 1.9 |
| Ambient Temperature(℃) |
-55~70 |
| Humidity |
10~90% |
| Wind Speed |
80m/s |
| Waterproof | IP66 |
| Options Available |
Wireless Remote Control |
Company Information
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
