Icao Led Heliport Inset Helipad Landing Lights 110-240vac Steady Burning
Product Details
| Light Source: | CREE Ultra High Intensity LED | Available Colors: | Green, White, Yellow, Blue, Red |
|---|---|---|---|
| Intensity(cd): | ICAO Standard, Refer To Photometric Table | Horizontal Degree(°): | Omni Direction (360°) |
| Vertical Degree(°): | ICAO Specification | LED Life Experience(hours): | >100,000 |
| Overall Size(mm): | θ220×100 | Installation Size(mm): | θ220×100-M10*2 |
| Highlight |
icao helipad landing lights,240v ac helipad landing lights,icao helipad led lights |
||
Product Description

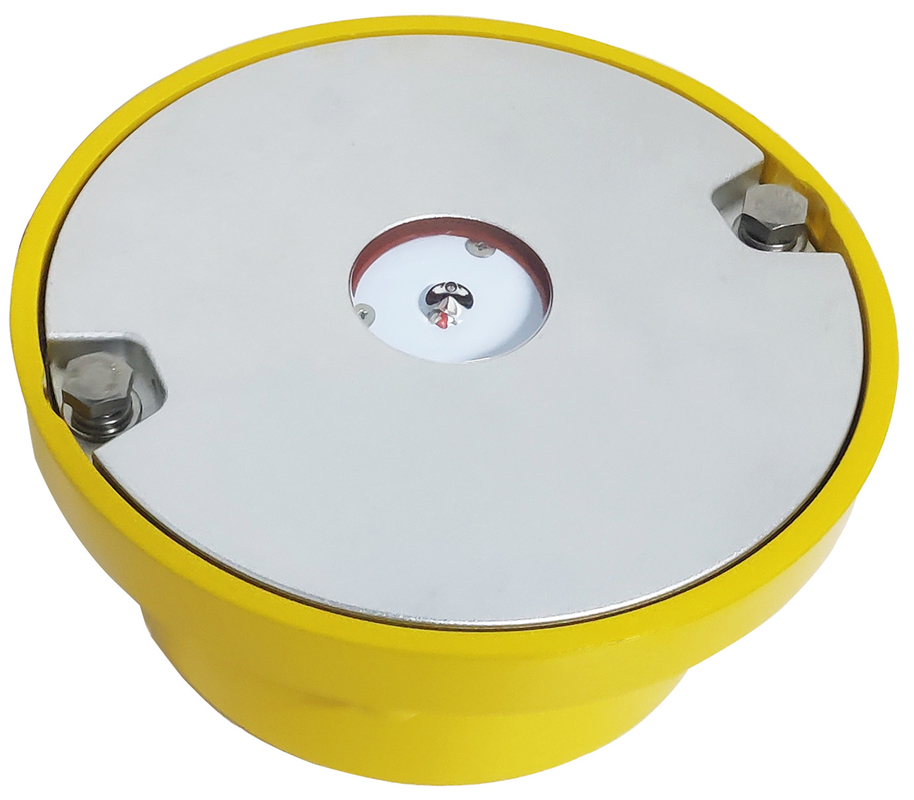

AH-HP-I Serial LED Heliport Inset Light
Heliport Inset light is always be installed at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
It could be used as Aiming point light, perimeter light of FATO (Final approach and take-off areas), TLOF (Touchdown and lift-off areas), taxiway, Flight path alignment guidance lighting, etc. The emitting color is green or yellow or white or blue.
8inch International standard mounting for aerodrome inset light.
Compliance
CAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
Features
Electrical
Ultra high intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V
Physical
Pressure resistance lens allowed the vehicles go through on light
IP68 waterproof ensure light work fine underground
Optional
Light intensity adjustable
Solar Power System
Application
Helipad/Heliport TLOF areas
Heliport FATO ares
Helipad Runway
Helipad taxiway
Aiming point light
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Operating Voltage | 110-240VAC, 48VDC, or others |
| Power(W) |
≤7.5W |
| Mounting |
Θ225×145-M10*2 |
| Dimension(mm) |
Θ220×133.47 |
| Weight(kg) | 4 |
| Ambient Temperature(℃) |
-55~70 |
| Humidity |
0~100% |
| Wind Speed | 240Km/h |
| Waterproof | IP68 |
| Options Available |
VHF pilot to ground remote control |
Company Information
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
