Quality LED Solar Powered Marine Lanterns 3 - 8nm 360 Degree Built In Photocel factory
Quality LED Solar Powered Marine Lanterns 3 - 8nm 360 Degree Built In Photocel factory
Quality LED Solar Powered Marine Lanterns 3 - 8nm 360 Degree Built In Photocel factory
Quality LED Solar Powered Marine Lanterns 3 - 8nm 360 Degree Built In Photocel factory
>

LED Solar Powered Marine Lanterns 3 - 8nm 360 Degree Built In Photocel

Brand Name: ANNHUNG
Model Number: AH-ML-S7
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Supply Ability: 1000Pieces for one month

Product Details


Colors: Red, Green, Yellow, White, Blue, Visible Range(nm, AT@0.74): 3-8NM Available (Standard:4-5NM)
Horizontal Output(degrees): 360 Vertical Divergence(degrees): ≥10°or ≥5°
Highlight

CREE LED Solar Powered Marine Lanterns

,

360 Degree Solar Powered Marine Lanterns

,

8nm Solar Marine Lantern

Product Description

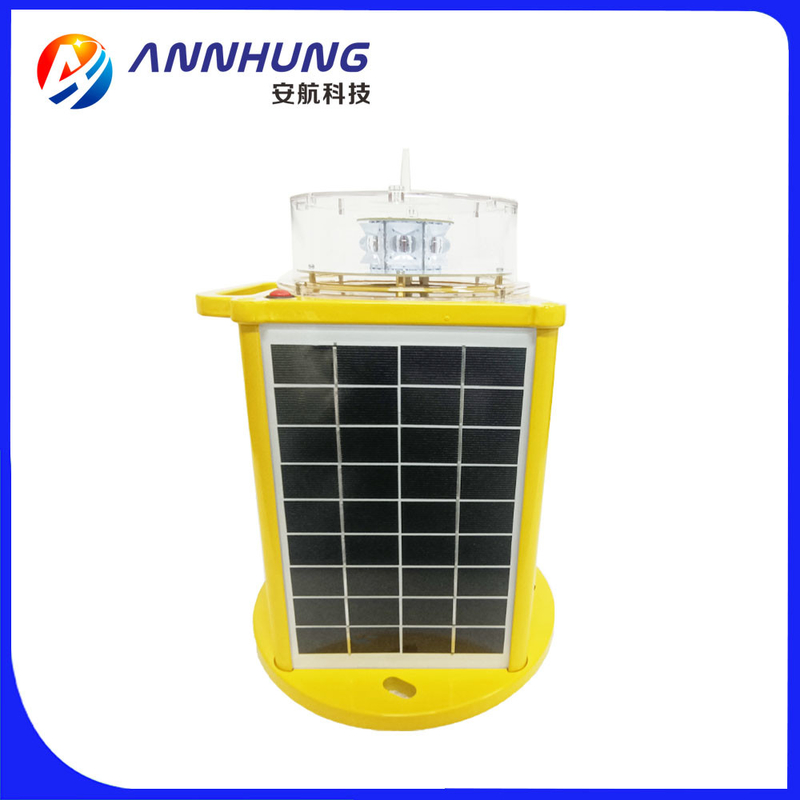

AH-ML-S7 LED Solar Powered Marine Lanterns





This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.



CREE Ultra high intensity LED is used as light source which make performance better.



There is no need to open the light, the light flashing characteristics(IALA 366 flashes) could be remote controlled by IR Programmer easily. (Optional)



GSM Monitoring as optional function, when fault happens, it will send out text message automatically.



Compliance

IALA E-200-1

CE



Features

Electrical

Based on LED technology, and its color complies to IALA Recommendations E-200-1.

LED technology reduces maintenance time & costs



Physical

PC housing, UV resistance, shockproof and corrosion proof.

Bird deterrent spike

Powder coated die casting aluminum base

4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon



System design

Built-in photocell for day/night operation(dusk to dawn)

ON/OFF button interface located under base



Optional

Charging port & External battery charger

GSM Cellphone Monitoring

RS232 communication port

GPS Sync flashing

366 IALA flash characteristics adjustable

Infrared Programmer for flashing rate setting



Application

AH-ML-S7 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.



LED Solar Powered Marine Lanterns 3 - 8nm 360 Degree Built In Photocel



Description Parameter
Light Source LED
Flash Characteristics

FL3S(0.2,2.8)

Operation Mode Dusk-to-dawn Automatically as standard.
LED Life Experience(hours) >100,000
Battery type Lithium ion battery
Nominal Voltage (V) 12
Mounting

200×200×Φ12

Dimension(mm)

250×250×370

Weight(kg) 5.5
Ambient Temperature(℃) -40~75
Humidity

0~100%

Wind Speed

80m/s

Waterproof IP68
Options Available

GPS Sync flashing





navigation lantern
marine navigation singal light
buoy marine lanterns
marine lanterns iala standard
iala led navigation marine lantern
buoy lanterns
marine lanterns





Product Highlights

AH-ML-S7 LED Solar Powered Marine Lanterns This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles. CREE Ultra high intensity LED is used as light source which make performance better. There ...
