Quality LED Heliport Elevated Light Steady Burning Airport Taxiway Lights ICAO Standard factory
Quality LED Heliport Elevated Light Steady Burning Airport Taxiway Lights ICAO Standard factory
Quality LED Heliport Elevated Light Steady Burning Airport Taxiway Lights ICAO Standard factory
Quality LED Heliport Elevated Light Steady Burning Airport Taxiway Lights ICAO Standard factory
>

LED Heliport Elevated Light Steady Burning Airport Taxiway Lights ICAO Standard

Brand Name: ANNHUNG
Model Number: AH-HP-E
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1
Supply Ability: 1000Pieces for one month

Product Details


Colors: Green, Yellow, White, Red, Blue, IR Intensity(cd): ICAO Standard
Horizontal Output(degrees): 360 Vertical Divergence(degrees): ICAO Standard
Flash Characteristics: Steady Burning Operation Mode: 24hours Operation
Product Life Expectancy: 10 Years Plus Waterproof: IP66
Highlight

AC220V Heliport Elevated Light

,

Heliport Elevated Light Steady Burning

,

ICAO Airport Taxiway Lights

Product Description

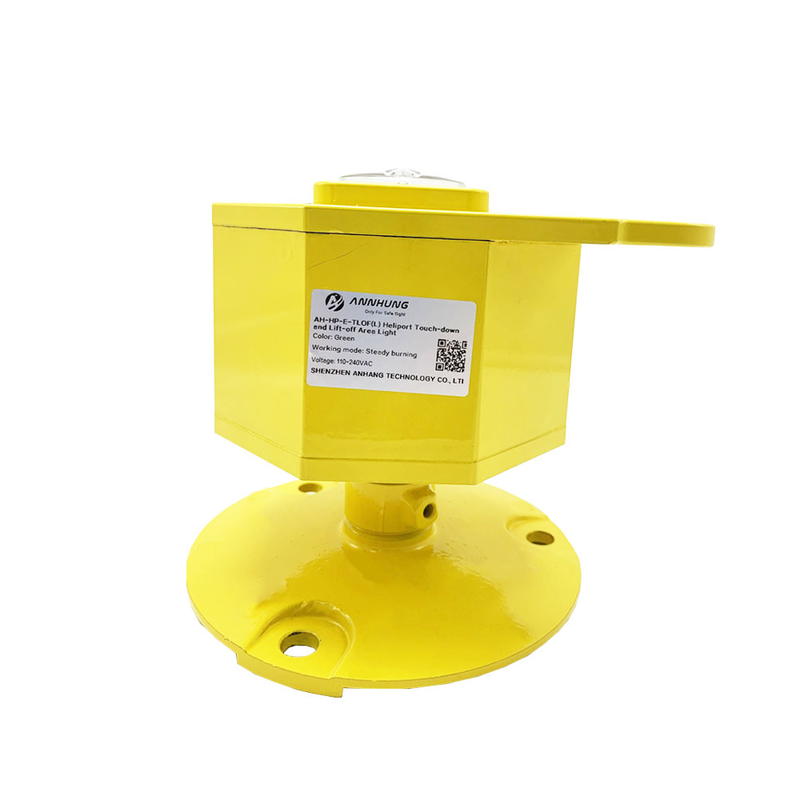

AH-HP-E Serial LED Heliport-Helideck Elevated Light

AH-HP-E Serial Heliport Elevated lights should not exceed a height of 25cm for Surface-level and Elevated heliports, not exceed a height of 15 cm for helideck. There is a fragile coupling in the base connection for heliport so if aircraft hit the light by accident, the base will break immediately to avoid more damage.

The lights could be used as FATO light, TLOF lights, Taxiway lights.

Compliance

ICAO Annex 14 Volume ǁ Heliports 5.3.

FAA AC 150/5390-2B Heliport Design Guide

CAP 437

Features

Electrical

High-intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light

Power supply available in AC(110-240VAC) and DC48V, DC12V and other voltage is optional

LED power supply board includes short circuit and open circuit protection

Physical

Unique designed Glass lens for converging light

Powder coated bright yellow color base make better visibility

Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

Optional

Infrared LED for pilot using NVG(Night Vision Goggles)

Controller for power supplying and turn ON/OFF light

VHF pilot to ground remote control

Light intensity adjustable

Application

Surface-level and Elevated heliports

HelideckShipboard heliports

LED Heliport Elevated Light Steady Burning Airport Taxiway Lights ICAO Standard

Description Parameter
Light Source LED
Flash Characteristics

Steady burning

Operation Mode 24hours operation
LED Life Experience(hours) >100,000
Operating Voltage 110-240VAC, 48VDC, or others
Power(W) 5W
Mounting

140×140×θ12(Installed on heliport)

Dimension(mm)

190×165×166 (Installed on heliport)

Weight(kg) 1.9
Ambient Temperature(℃)

-55~70
Humidity

10~90%

Wind Speed

80m/s

Waterproof IP66
Options Available

Light intensity adjustable

Company Information

Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.


All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).

SHENZHEN ANHANG TECHNOLOGY CO., LTD
Room 801, Building 1, Shenzhen Halcyon New Materials Co.,Ltd. No. 6, Jinlong 1st Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, Guangdong Province, PRC 518118

Email: dana@annhung.com

Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf

Product Highlights

AH-HP-E Serial LED Heliport-Helideck Elevated Light AH-HP-E Serial Heliport Elevated lights should not exceed a height of 25cm for Surface-level and Elevated heliports, not exceed a height of 15 cm for helideck. There is a fragile coupling in the base connection for heliport so if aircraft hit the ...
