CREE LED Heliport Flood Light Steady Burning 90 Degree 110 - 240VAC
Product Details
| Light Source: | CREE Ultra High Intensity LED | Irradiation Distance: | 25-30meter |
|---|---|---|---|
| Light Intensity(cd/m²): | ＞10cd/m² | Operation Mode: | 24hours Operation |
| LED Life Experience(hours): | >100,000 | Weight(kg): | 2.4 |
| Highlight |
CREE LED Heliport Flood Light,Heliport Flood Light Steady Burning,240VAC heliport flood light |
||
Product Description

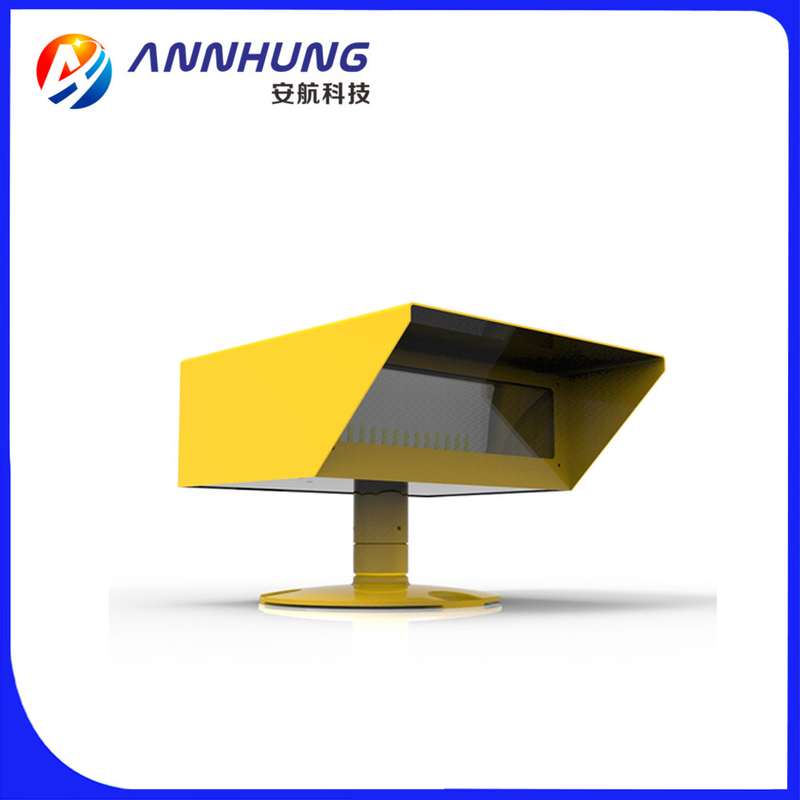

AH-HP-F1 LED Heliport Surface Flood Light
LED Surface Heliport Flood Light is used for illuminate the whole heliport area at night. It is specially designed for helipads/Helideck, providing glare-free, uniform surface lighting for landing and loading activities. LED Surface Floodlights improve pilot depth perception by reflecting the surface of the helipad/helideck, allowing pilots to better estimate their altitude during landing.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.9
FAA AC 150/5390-2B Heliport Design Guide
CAP437
Features
Electrical
High intensity, energy efficient LED, glare-free floodlight
Period of LED Life ≥100,000 hours
Power supply available in AC(110-240VAC), DC48V, DC12V, etc
Ultra-efficient LED reduce power consumption
Physical
The enclosure is made out of stainless steel powder coated in electrostatic field, ensure it have good weather resistance
The assembly has a low profile of less than 25cm and mounts to frangible point
Specially custom lens optic designed specifically for helipad operation
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Application
Helipad/Heliport /Helideck
Heliport lighting
Helipad light
Airfield light
Airport light
