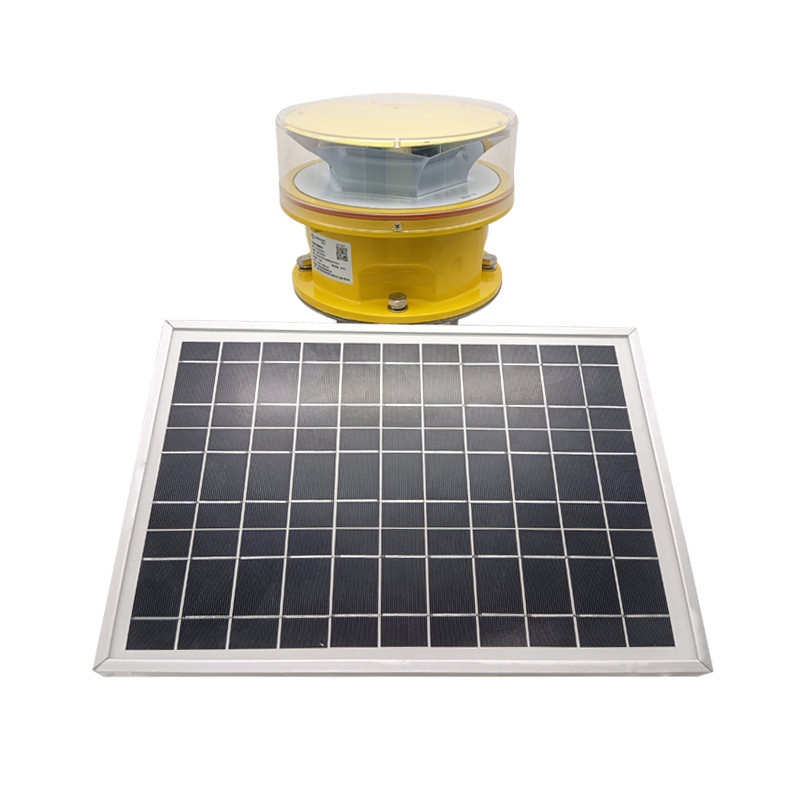

Red FAA L-864 Medium Intensity Aviation Obstruction Light Dusk To Dawn Automatically
Product Details
| Available Colors: | Red(Other Color Is Optional) | Intensity(cd): | ≥2000cd |
|---|---|---|---|
| Flash Characteristics: | 20FPM | Waterproof: | IP66 |
| Wind Speed: | 240Km/h | Options Available: | Solar Power System |
| Operation Mode: | Dusk-to-dawn Automatically As Standard. | ||
| Highlight |
FAA L-864 Aviation Obstruction Light,CREE LED medium intensity obstruction light,Waterproof medium intensity aviation light |
||
Product Description
AH-MI-B2 LED Medium-intensity Aviation Obstruction Light
Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B / C Obstruction Light
FAA L-864
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards
Features
Electrical
CREE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)
Physical
UV protection Powder coated bright yellow color base make better visibility
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Surge and lightning protection
Optional
GPS synchronization
Infrared LED for pilot using NVG
Application
AH-MI-B2 medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
20-60FPM - Type B (factory setting: 20FPM) |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
| Operating Voltage | 110-240VAC, 48VDC, or others |
| Power(W) | 5 |
| Mounting |
190×190×θ12 |
| Dimension(mm) |
229×229×168 |
| Weight(kg) | 2.5 |
| Ambient Temperature(℃) |
-55~70 |
| Humidity | 10%-95%RH(No condensation) |
| Wind Speed | 240Km/h |
| Waterproof | IP66 |
| Options Available |
Flashing rate |
