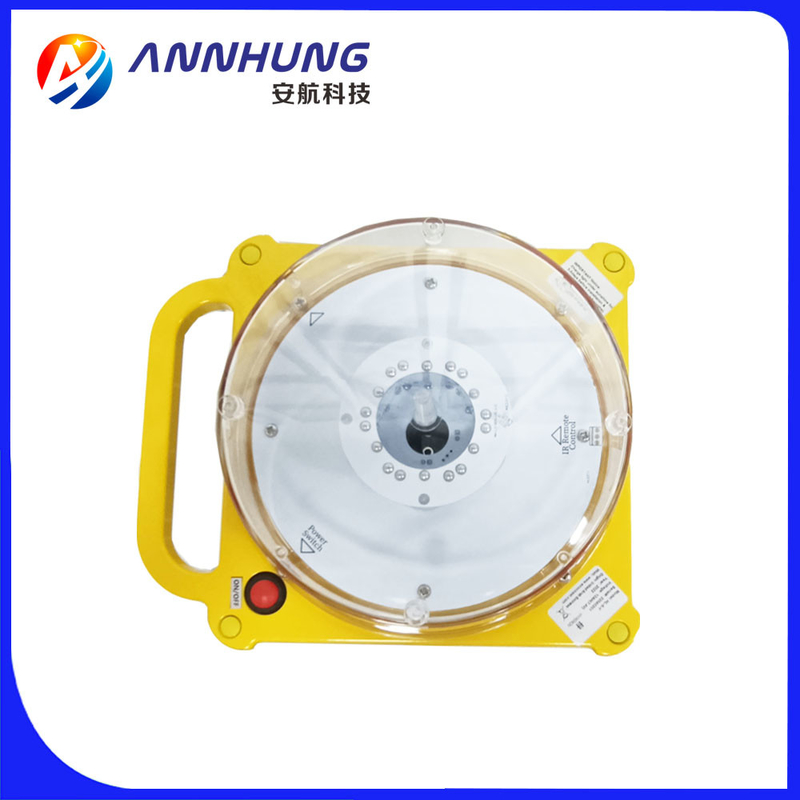

AH-ML-S7 LED Solar Powered Marine Lanterns Marine Navigation Lanterns

Brand Name: ANNHUNG
Model Number: AH-ML-S7
Place of Origin: China
Certification: ICAO CE
Minimum Order Quantity: 1

Product Details


Highlight

PC housing Solar Powered Marine Lanterns

,

Sync flashing Solar Powered Marine Lanterns

,

corrosion proof Marine Navigation Lanterns

Product Description

AH-ML-S7 LED Solar Powered Marine Lanterns



This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.



There is no need to open the light, the light flashing characteristics(IALA 366 flashes) could be remote controlled by IR Programmer easily.





AH-ML-S7 LED Solar Powered Marine Lanterns Marine Navigation Lanterns



Compliance

IALA E-200-1

CE



Features

Electrical

Based on LED technology, and its color complies to IALA Recommendations E-200-1.

LED technology reduces maintenance time & costs



Physical

PC housing, UV resistance, shockproof and corrosion proof.

4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon



System design

Solar panel as photocell for day/night operation(dusk to dawn)

The flashing rate(Fixed mode included) is adjust by IR programmer.

If the ender user will use the fixed mode as the final working mode, please inform us before order.



Optional

Charging port & External battery charger





Application

AH-ML-S7 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.





Description Parameter
Light Source LED
Flash Characteristics

Adjustable 366 IALA light characteristics

Operation Mode

Dusk-to-dawn Automatically (Built-in photocell)

LED Life Experience(hours) >100,000

Operating Voltage

7.4Vdc or 12Vdc

Battery type

Lithium ion Battery

Mounting

200×200×Φ12

Dimension(mm)

250×250×370

Weight(kg)

5.5

Ambient Temperature(℃)

-35~80

Humidity

0~100%

Wind Speed 80m/s
Waterproof IP68

Options Available

GPS Sync flashing





Marine lanterns with iala

Marine lantern

Solar marine light

Solar powered marine beacon light

Solar beacon marine light

Solar buoy light

Solar marine lantern

Iala marine navigation lanters

River safe marine gps lantern







Product Highlights

AH-ML-S7 LED Solar Powered Marine Lanterns This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles. There is no need to open the light, the light flashing characteristics(IALA 366 flashes) ...
