Red / Green / White Helicopter Approach Path Indicator CHAPI 24hours Operation
Product Details
| Body Material: | Stainless Steel | Leg Material: | Die Casting Aluminum |
|---|---|---|---|
| Mounting: | 140x M10 | Dimension(mm): | 455x520x184 |
| Weight(kg): | 10 | Colors: | Red/Green/White |
| Highlight |
Helicopter Approach Path Indicator IP65,140x M10 Helicopter Approach Path Indicator,CHAPI Approach Path Indicators |
||
Product Description

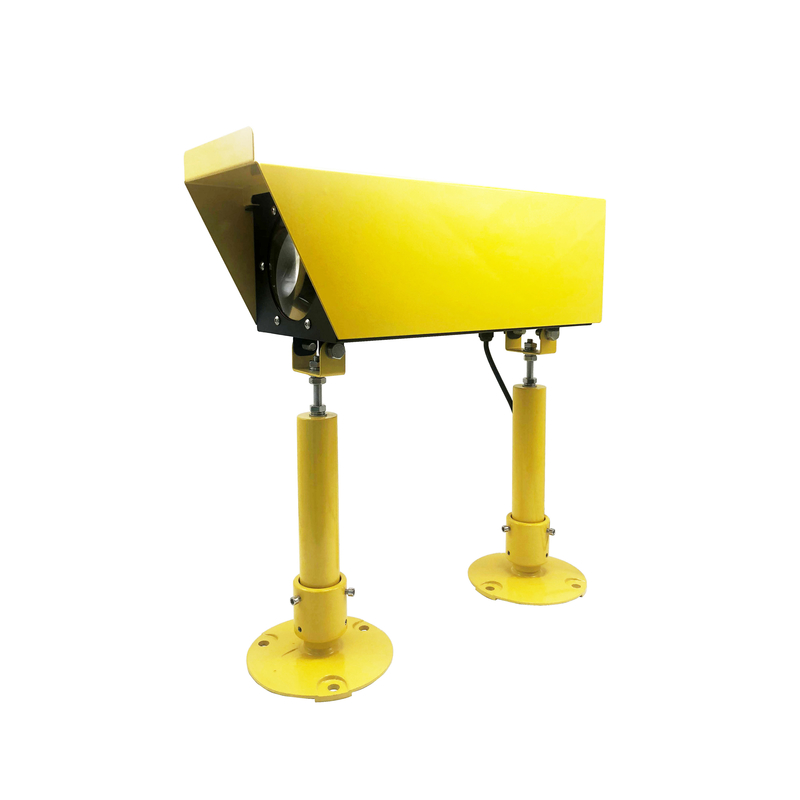

AH-HP-CHAPI LED CHAPI Heliport Approach Path Indicators
The LED CHAPI Heliport Approach Path Indicators (CHAPI) uses LED technology to provide the pilot with safe and accurate glide slope on final approach to the helipad. A set of two LED CHAPI Light Housing Assemblies (LHAs) are seen by the pilot in combinations of white, green and red to indicate a path that is too high, too low or within the 6° ±0°15' glide slope.
CHAPI Visual Indication:
Compliance
ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1
FAA AC 150/5390-2B Heliport Design Guide
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110, 240VAC), DC48V or others
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
Fragile coupling reduce the secondary damage to helicopters effectively
Optional
Clinometer
Solar power system
Application
Permanent, Temporary, Emergency Helipad/Airport/Helideck
OFFSHORE/ ONSHORE USAGE
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Steady burning |
| Operation Mode |
24hours operation |
| LED Life Experience(hours) | >100,000 |
|
Operating Voltage |
AC220V |
|
Power(W) |
50 |
| Mounting |
140x M10 |
|
Dimension(mm) |
455x520x184 |
|
Weight(kg) |
10 |
|
Ambient Temperature(℃) |
-35~80 |
| Humidity |
10~90% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
|
Options Available |
Wireless Remote Control |
