ICAO Solar Helipad Lights Final Approach And Take Off Area Lighting Steady Burning
Product Details
| Emitting Color: | White | Horizontal Degree(°): | Omnidirection (360°) |
|---|---|---|---|
| Vertical Degree(°): | ICAO Specification | Operation Mode: | 24hours Operation |
| Weight(kg): | 4 | Product Life Expectancy: | ≥10 Years |
| Highlight |
ICAO solar helipad lights,Omnidirection solar helipad lights,Helipad Landing Steady Burning |
||
Product Description
LED Heliport Final Approach and Take-off Area Lighting Steady burning 24hours operation

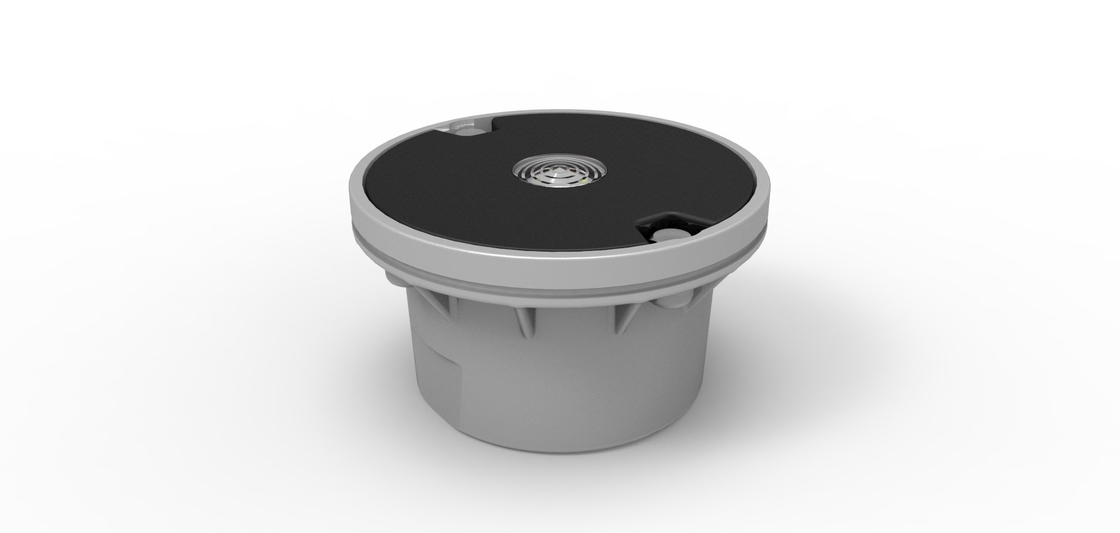

AH-HP-I-FATO(L) LED Heliport Final Approach and Take-off Area Lighting
The objective of a FATO lighting system for onshore surface-level heliports is to provide to the pilot operating at night an indication of the shape, location and extent of the FATO. FATO lights shall be placed along the edges of the FATO and be fixed omnidirectional lights showing white.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.7
CAAC MH 5001-2013 Aerodrome technical standards
CAAC MH 5013-2014 Technical Standards of Civil Heliports
Features
Electrical
Power supply available in AC(110-240VAC), DC48V
Physical
Pressure resistance lens allowed the vehicles go through on light
Die-casting aluminum covered by color powder coasted which have good corrosion protection and load bearing.
Optional
VHF pilot to ground remote control
Light intensity adjustable
Application
Surface-level heliport
Elevated heliport or helideck
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Steady burning |
| Operation Mode |
24hours operation |
| LED Life Experience(hours) | >100,000 |
|
Operating Voltage |
110-240VAC, 48VDC, or others |
|
Power(W) |
5 |
| Mounting |
Θ220×133.47 |
|
Dimension(mm) |
Θ225×145-M10*2 |
|
Weight(kg) |
4 |
|
Ambient Temperature(℃) |
-55~70 |
| Humidity |
0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
|
Options Available |
Light intensity adjustable |
