Helipad Landing Lights
>
|
|
| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | CE |
| Model Number | AH-HP-E |

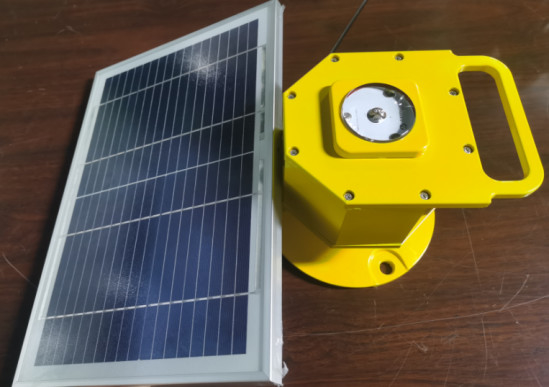

AH-HP-E Serial LED Heliport - Helideck Elevated Light
The lights could be used as FATO light, TLOF lights, Taxiway lights.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
CAAC MH 5001—2013 Aerodrome technical standards
CAAC MH 5013—2014 Technical Standards of Civil Heliports
CAP 437
Features
Electrical
High-intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
LED power supply board includes short circuit and open circuit protection
Physical
Unique designed Glass lens for converging light
Powder coated bright yellow color base make better visibility
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
Light intensity adjustable
Solar Power system
Application
Surface-level and Elevated heliports
Helideck Shipboard heliports
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Steady burning |
| Operation Mode |
24hours operation |
| LED Life Experience(hours) | >100,000 |
|
Operating Voltage |
110-240VAC, 48VDC, or others |
|
Power(W) |
5 |
| Mounting |
140×140×θ12(Installed on heliport) |
|
Dimension(mm) |
190×165×166 (Installed on heliport) |
|
Weight(kg) |
1.9 |
|
Ambient Temperature(℃) |
-55~70 |
| Humidity |
10~90% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
|
Options Available |
Solar Power system |
