LED Marine Solar Lantern PC Housing Adjustable 366 IALA Navigation Lights
Product Details
| Body Material: | UV Protected Polycarbonate | Base Material: | Powder-coated Die-casting Aluminum |
|---|---|---|---|
| Battery Type: | Lithium Ion Battery(NiMH Is Optional) | Battery Capacity (Ah): | 12AH As Standard(Others Are Customized) |
| Nominal Voltage (V): | 7.4V Or 11.1V | Battery Service Life: | Average 5 Years |
| Product Life Expectancy: | 10 Years Plus | Waterproof: | IP68 |
| Highlight |
PC housing marine solar lantern,Adjustable 366 marine solar lantern,366 IALA Navigation Lights |
||
Product Description

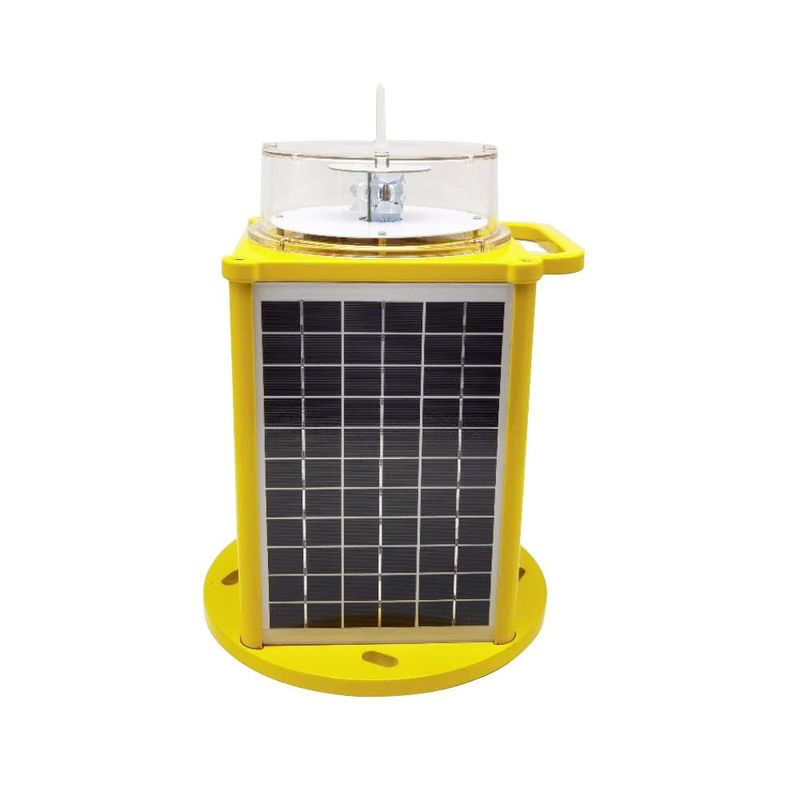

AH-ML-S7 LED Solar Powered Marine Lanterns
This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.
Compliance
IALA E-200-1
CE
Features
Electrical
Based on LED technology, and its color complies to IALA Recommendations E-200-1.
LED technology reduces maintenance time & costs
Physical
PC housing, UV resistance, shockproof and corrosion proof.
4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
Solar panel as photocell for day/night operation(dusk to dawn)
he flashing rate(Fixed mode included) is adjust by IR programmer.
Optional
Charging port & External battery charger
Application
AH-ML-S7 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Adjustable 366 IALA light characteristics |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| LED Life Experience(hours) | >100,000 |
|
Operating Voltage |
7.4Vdc or 12Vdc |
|
Battery type |
Lithium ion Battery(NiMH is optional) |
| Mounting |
200×200×Φ12 |
|
Dimension(mm) |
250×250×370 |
|
Weight(kg) |
5.5 |
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof | IP68 |
|
Options Available |
Charging port & External battery charger |
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
