Quality 20FPM Solar Marine Beacon Light Marine Navigation Lanterns With IALA factory
Quality 20FPM Solar Marine Beacon Light Marine Navigation Lanterns With IALA factory
>

20FPM Solar Marine Beacon Light Marine Navigation Lanterns With IALA

Brand Name: ANNHUNG
Model Number: AH-LS-C1
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1

Product Details


Battery Type: Lithium Ion Battery Battery Capacity (Ah): Depends On Different Visible Range
Flash Characteristics: 20FPM Autonomy (hours): Steady: 60 Flashing: 150(longer Time Is Optional)
Battery Service Life: ≥3 Years Weight(kg): 2.5
LED Life Experience(hours): >100,000 Operating Voltage: 3.7Vdc
Highlight

20FPM solar marine beacon light

,

PC housing marine navigation lanterns

,

IALA solar marine beacon light

Product Description

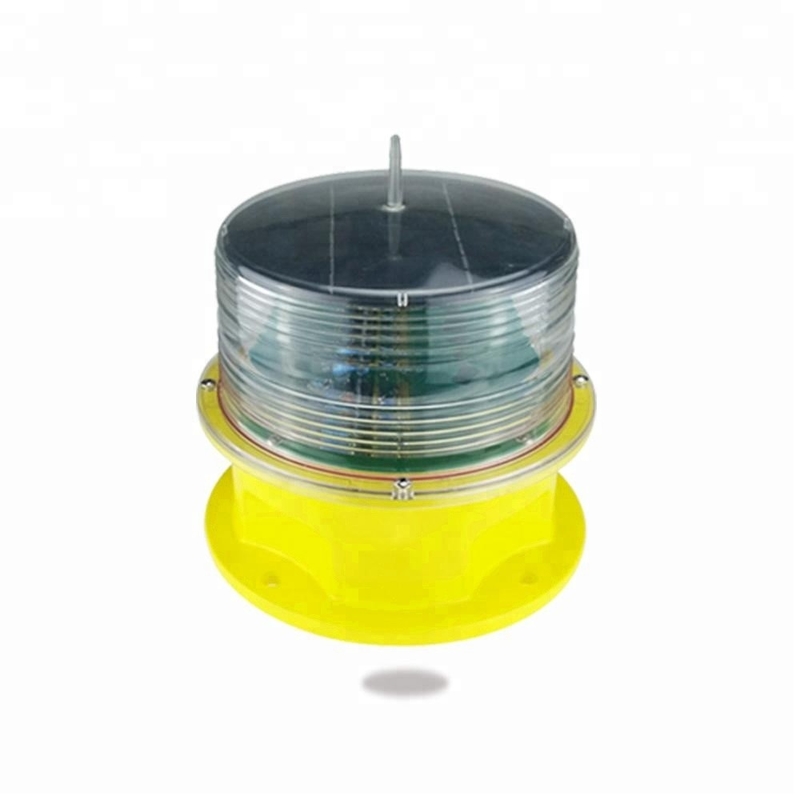

AH-LS-C1 LED Solar Powered Marine Lanterns





This LED Marine Lanterns is completely self-contained lantern, adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply.





Compliance

IALA E-200-1



Features

Electrical

Based on LED technology, and its color complies to IALA Recommendations E-200-1.

LED technology reduces maintenance time & costs



Physical

Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).

PC housing,UV resistance, shockproof and corrosion proof.

Bird deterrent spike

Built-in monocrystalline silicon solar panel, conversion efficiency is better than polycrystalline silicon



System design

Built-in photocell for day/night operation(dusk to dawn operation)

ON/OFF button interface located under base

Euipped with IR programmer, so the user could set the flashing rate remotely without open the light



Optional

External battery charger

GPS sync flashing



Application

AH-LS-C1 Solar Marine Lantern is used on buoy, light house and any other off shore site for marine/river safe navigation.



20FPM Solar Marine Beacon Light Marine Navigation Lanterns With IALA





Description Parameter
Light Source LED
Flash Characteristics 20FPM
Operation Mode Dusk-to-dawn Automatically as standard.
LED Life Experience(hours) >100,000

Operating Voltage

3.7Vdc

Battery type

Lithium ion battery

Mounting

190×190×Φ12

Dimension(mm)

220×220×233

Weight(kg)

2.5

Ambient Temperature(℃)

-55~70

Humidity

0~100%

Wind Speed

80m/s

Waterproof IP68

Options Available

Charging port & charger from 110-240vac



Marine lanterns with iala

Marine lantern

Solar marine light

Solar powered marine beacon light

Solar beacon light ip68

Solar beacon marine light

Solar led buoy

Solar buoy light

Solar marine lantern





Product Highlights

AH-LS-C1 LED Solar Powered Marine Lanterns This LED Marine Lanterns is completely self-contained lantern, adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. Compliance IALA E-200-1 Features Electrical Based on LED ...
