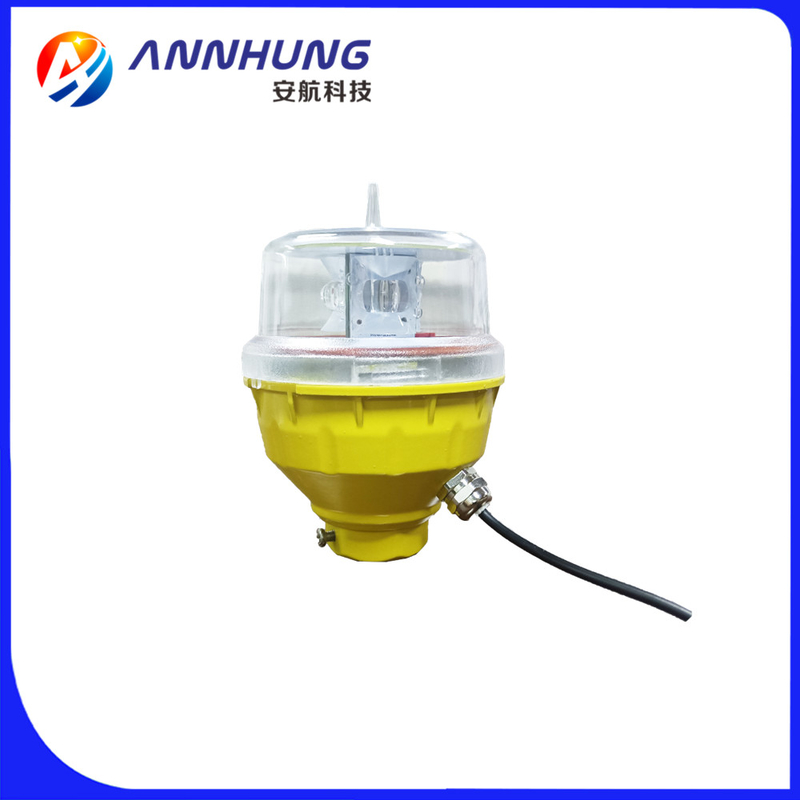

AH-LI-C2 Low-intensity Type C Aviation Obstruction Light
Application
Vehicles or any other mobile obstacle on airport
This Low-intensity obstacle lights, Type C, displayed on vehicles associated with emergency or security shall be
flashing-blue and those displayed on other vehicles shall be flashing-yellow.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type C Obstacle Light
Electrical
3 high power CREE LED, make sure LED keep bright while use
LED power supply board includes short circuit and open circuit protection, Line surge protection by metal oxide varistor
Physical
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Magnetic base, easy for mounting on the top of vehicle
System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance <500cd/㎡
Flashing mode: 60FPM
Surge and lightning protection
Optional
Alarm contact(NO COM NC)for remote monitoring
Infrared LED for pilot using NVG
GPS sync flashing
Description | Parameter |
Light Source | LED |
Flash Characteristics |
60-90FPM(Factory setting: 60FPM) |
Operation Mode | Dusk-to-dawn Automatically as standard. |
LED Life Experience(hours) | >100,000 |
Instantaneous power(W) |
DC12V |
Power(W) | 2 |
Mounting | 3/4 inch pipe thread as standard. |
Dimension(mm) | Φ90×130 |
Weight(kg) | 0.3 |
Ambient Temperature(℃) |
-55~70 |
Humidity | 10%-95%RH(No condensation) |
Wind Speed | 130m/s |
Waterproof | IP66 |
Options Available | Dry Contact alarm(NO COM NC) |
