Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction
  • Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction
  • Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction
  • Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction
  • Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction
  • Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction
  • Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction
Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction

Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction

Place of Origin China
Brand Name ANNHUNG
Certification CE
Model Number AH-LI-B2
Product Details
Intensity(candela):
≥32.5cd
Horizontal Output(degrees):
360
Vertical Divergence(degrees):
≥10
Body Material:
Polycarbonate
Base Material:
Die-casting Aluminum
Waterproof:
IP66
Highlight:

Low Intensity Aviation Warning Light

,

L810 Single Aviation Obstruction Warning Light

,

Single Aviation Obstruction Warning Light

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
carton
Delivery Time
7-15 work days
Payment Terms
T/T, Western Union, MoneyGram
Product Description

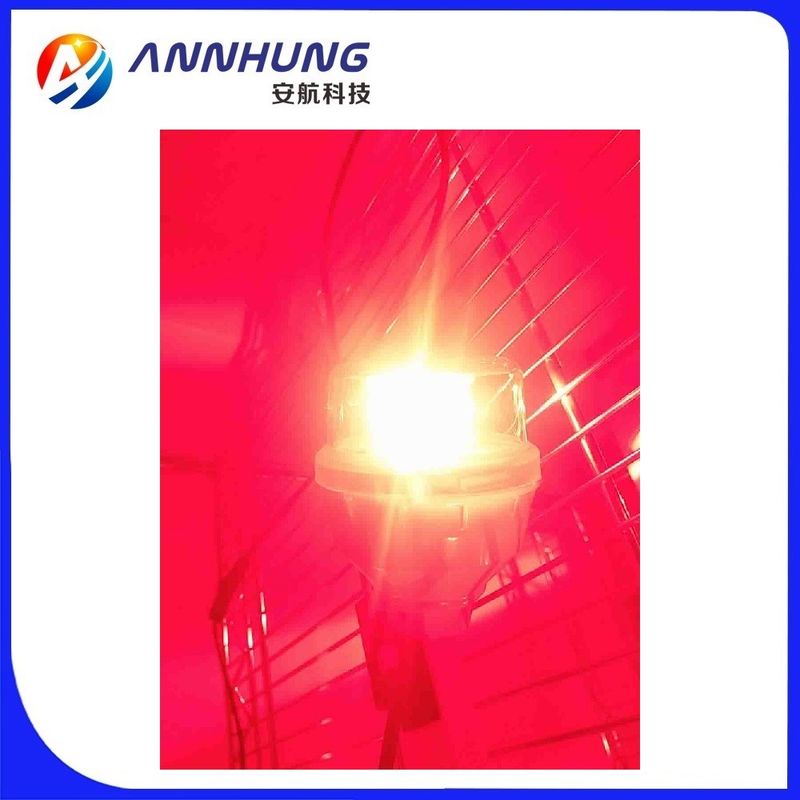

AH-LI-B2 Low-intensity L810 Single Aviation Obstruction Light

Application
AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.

When obstacle object is higher than 45m, AH-LI-B2 can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.

Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction 0

Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstacle Light
FAA L-810
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards

Electrical
3 high power CREE LED, make sure LED keep bright while use
LED power supply board includes short circuit and open circuit protection, Line surge protection by metal oxide varistor

Physical
Bird deterrent spike on top
Unique designed PMMA lens for converging light and good transparency
UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments
3/4inch thread hole make pole installation easy

System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance ＜50cd/㎡
Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB

Optional
Alarm contact(NO COM NC)for remote monitoring
GPS sync flashing

Description Parameter
Light Source LED
Flash Characteristics
Steady-burning/20/30/60 adjustable
Operation Mode
Dusk-to-dawn Automatically as standard.
LED Life Experience(hours) >100,000
Instantaneous power(W) 110-240VAC, 48VDC, or others
Power(W) 2.5
Mounting
3/4 inch pipe thread as standard.
Dimension(mm)
Φ90×130
Weight(kg) 0.3
Ambient Temperature(℃) -55~70
Humidity 10%-95%RH(No condensation)
Wind Speed
130m/s
Waterproof IP66
Options Available Dry Contact alarm(NO COM NC)


Low Intensity L810 Aviation Warning Light Lig Single Aviation Obstruction 1





LED Aviation Obstruction Lights

Aviation obstruction light

Light aircraft

Obstruction light

L810

Aviation lamp

Aviation light for tower

Obstruction light
