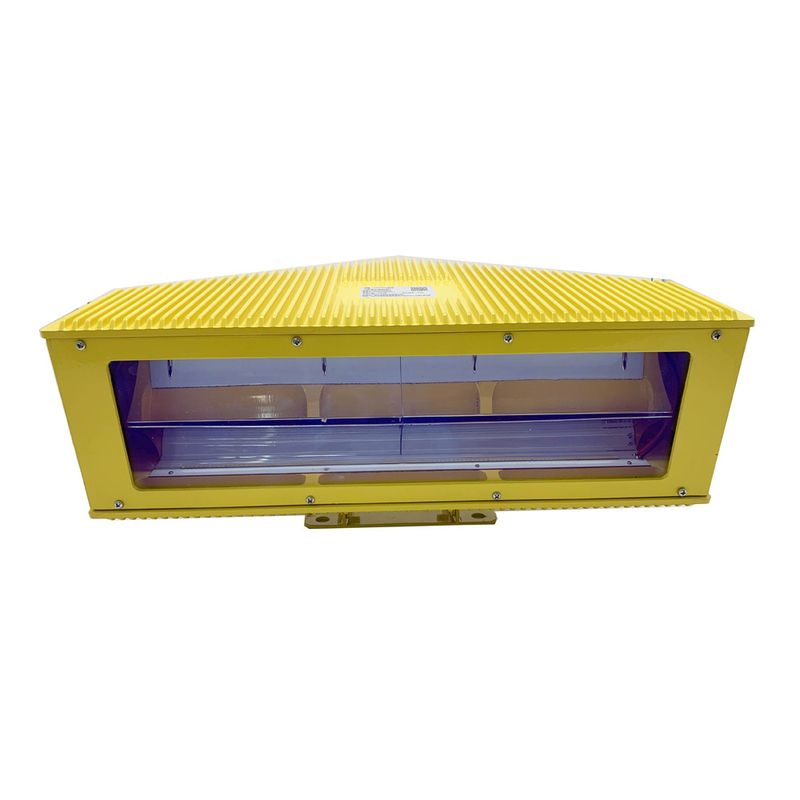

High Intensity LED Aviation Obstruction Light White 40 - 60FPM AC 240V
Product Details
| Light Source: | LED | Intensity(cd): | ≥200,000cd(Daytime) (ICAO Type A) Optional: 270,000cd±25%(Daytime) (FAA L- 856) ≥20,000cd(Twilight) ≥2,000cd(Night) |
|---|---|---|---|
| Horizontal Output(degrees): | 90 | Vertical Divergence(degrees): | 3-7 |
| Operating Voltage: | AC(110-240V) | Weight(kg): | 10 |
| Highlight |
LED Aviation Obstruction Light High Intensity,White 60FPM LED Aviation Obstruction Light,AC 240V LED Aviation Obstruction Light |
||
Product Description
LED High-intensity Type A Aviation Obstruction Light
This High-intensity Aviation Obstruction Light flashing white color 24 hours and designed for marking top of obstacle that exceed 150 meters in height.
Compliance
ICAO Annex 14 Volume 1, Eight edition, 2018, table 6.3 High Intensity Type A Obstruction Light
CAAC MH6012-2015 Aviation obstruction light, MH 5001-2013 Aerodrome technical standards
Features
Electrical
CREE ultra-high intensity LED as light source saving power
Physical
Unique design and UV protected polycarbonate lens for converging light and saving LED power
Base material is powder coated die-casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
System design
Built-in photocell for day/twilight/night operation
Surge and lightning protection
Optional
Dry contact alarm output for remote monitoring
Infrared LED for pilot using NVG
User adjustable flashing rate (40, 50, 60 flashes/minute)
Application
AH-HI-A1(L) High-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc. when the obstacle height is more than 150meter, and most time work with low intensity lights & medium intensity light installed on the lower place.
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
40-60FPM
|
| Operation Mode |
24hours operation,3 different modes
|
| LED Life Experience(hours) | >100,000 |
|
Operating Voltage |
110-240VAC, 48VDC, or others |
|
Power(W) |
＜50W(40fpm)
|
| Mounting |
140×54×θ12(mm)
|
|
Dimension(mm) |
470×248×212
|
|
Weight(kg) |
10 |
|
Ambient Temperature(℃) |
-55~70 |
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof | IP66 |
|
Options Available |
Dry Contact alarm(NO COM NC)
|
