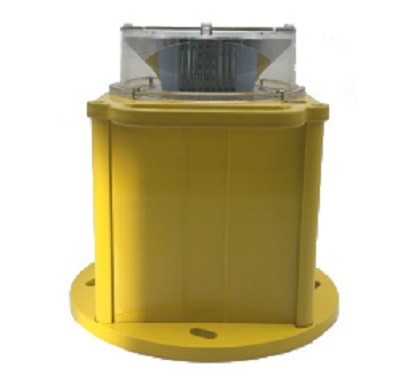

LED Heliport Beacon 2500cd White Morse Code H Ground Remote Control
Product Details
| Light Source: | LED (IR Is Optional) | Vertical Divergence(degrees): | 10 |
|---|---|---|---|
| Operation Mode: | 24hours Operation | Available Colors: | White |
| Intensity(cd): | ≥2500cd | LED Life Experience(hours): | >100,000 |
| Horizontal Output(degrees): | 360 | ||
| Highlight |
2500cd Heliport Beacon Landing Lights,LED Heliport Beacon Landing Lights,Heliport Beacon Lights Remote Control |
||
Product Description
AH-HP-B2 flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ).
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.2
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in DC(12, 48VDC) or AC(110-240VAC)
Physical
Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Optional
Controller for power supplying and turn ON/OFF light
Application
Helipad/Heliport/Helideck
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Morse code “H” |
| Operation Mode |
24hours operation |
| LED Life Experience(hours) | >100,000 |
|
Operating Voltage |
110-240VAC, 48VDC, 24VDC or others |
|
Power(W) |
12W |
| Mounting |
200×200×θ12 |
|
Dimension(mm) |
250×250×250 |
|
Weight(kg) |
3.5 |
|
Ambient Temperature(℃) |
-35~80 |
| Humidity |
10~90% |
| Wind Speed |
80m/s |
| Waterproof | IP66 |
|
Options Available |
VHF Pilot to Ground Remote Control |
Company Information
Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
Product Highlights
AH-HP-B2 LED Heliport Beacon AH-HP-B2 flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ). Compliance ICAO Annex 14 Volume ǁ Heliports 5.3.2 FAA AC 150/5390-2B Heliport Design Guide CAP 437 Features Electrical LED as light source saving power ...
