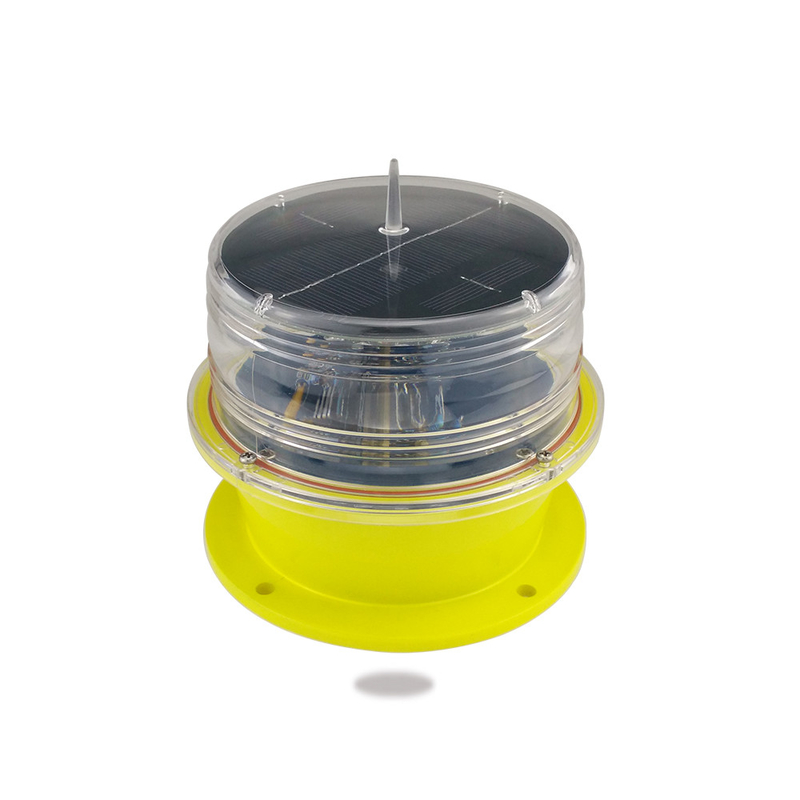

Helipad Solar Airfield Taxiway Lighting Runway Edge 12cd
Product Details
| Light Source: | LED | Flash Characteristics: | Steady(Flashing Mode Is Optional) |
|---|---|---|---|
| Available Colors: | Red, Green, Yellow, White, Blue | LED Life Experience(hours): | >100,000 |
| Operation Mode: | 24hours Working After Switched ON | Intensity(cd): | 12cd |
| Highlight |
Solar Airfield Taxiway lighting,Solar Airfield Runway edge lighting,12 cd Solar Helipad lighting |
||
Product Description
AH-SA-B Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary helipad. Light weight make it very easy for user to take and move the AH-SA-B.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Physical
Bird deterrent spike
Powder coated die casting aluminum base
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
ON/OFF button interface located under base
Optional
External battery charger for 110-240vac charging
Wireless remote control
Application
Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting
Helipad taxiway
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Steady burning |
| Operation Mode |
24hours operation |
| LED Life Experience(hours) | >100,000 |
| Battery type | Lithium ion battery |
| Solar Module Type | Mono crystalline Silicon |
| Mounting |
140×140×M6 |
|
Dimension(mm) |
162×162×160 |
|
Weight(kg) |
1 |
|
Ambient Temperature(℃) |
-55~70 |
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof | IP68 |
|
Options Available |
Photocell for day/night operation |
Company Information
Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
