Solar Airport Lighting
>
|
| Place of Origin | China |
| Brand Name | ANNHUNG |
| Certification | CE |
| Model Number | AH-SA-A-TE-B |

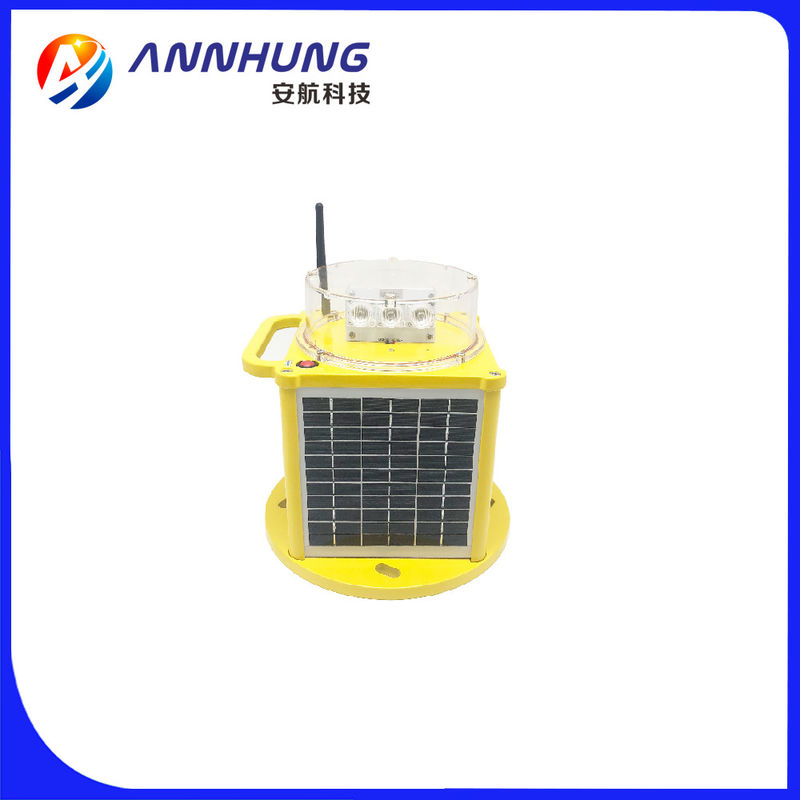

AH-SA-A-TE-B Taxiway Edge Light
Compliance
CAO Annex 14 Vol. I (7th. Edition, July 2016)
Features
Physical
4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
System design
ON/OFF button interface
Remote Controlled By wireless remote controller
Application
Taxiway lighting
Optional
External battery charger(110-240VAC)
GPS sync flashing
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Steady burning |
| Operation Mode |
24hours operation |
| LED Life Experience(hours) | >100,000 |
|
Battery type
|
Lithium ion battery
|
|
Solar Module Type
|
Mono crystalline Silicon
|
| Mounting |
200×200×M10
|
|
Dimension(mm) |
250×250×250
|
|
Weight(kg) |
5 |
|
Ambient Temperature(℃) |
-55~70 |
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof | IP68 |
|
Options Available |
Frangible coupling base
|
Company Information
Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
