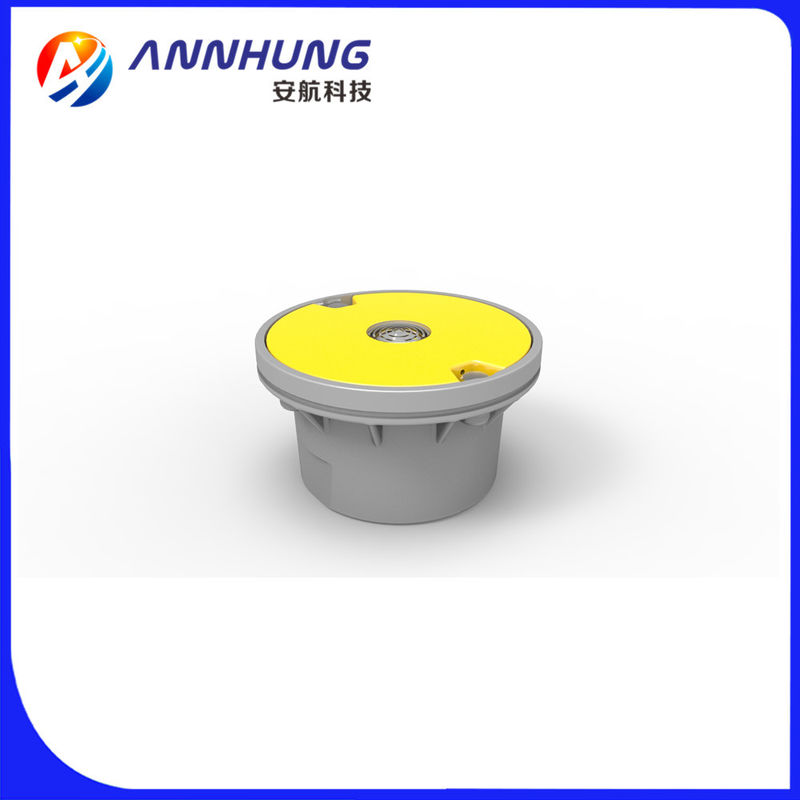

Flight Path Alignment Guidance Lighting White ICAO Standard Omnidirection 360°
Product Details
| Light Source: | CREE Ultra High Intensity LED | Available Colors: | White |
|---|---|---|---|
| Flash Characteristics: | Steady Burning | LED Life Experience(hours): | >100,000 |
| Horizontal Degree(°): | Omnidirection (360°) | Vertical Degree(°): | ICAO Specification |
| Highlight |
Flight Path Alignment Guidance Lighting,Omnidirectional 360° Helipad Landing Lights,CREE Ultra high intensity LED |
||
Product Description
AH-HP-I-F Flight path alignment guidance lighting
Flight path alignment guidance lighting
8inch International standard mounting for aerodrome inset light.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAAC MH 5001—2013 Aerodrome technical standards
CAAC MH 5013—2014 Technical Standards of Civil Heliports
Electrical
Ultra high intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC), DC48V
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Light intensity adjustable
| Description | Parameter |
| Light Source | LED |
| Flash Characteristics |
Steady burning |
| Operation Mode |
24hours operation |
| LED Life Experience(hours) | >100,000 |
|
Operating Voltage |
110-240VAC, 48VDC, 24VDC or others |
|
Power(W) |
≤7.5W |
| Mounting |
Θ220×133.47 |
|
Dimension(mm) |
Θ225×145-M10*2 |
|
Weight(kg) |
4 |
|
Ambient Temperature(℃) |
-55~70 |
| Humidity |
0~100% |
| Wind Speed |
80m/s |
| Waterproof | IP68 |
|
Options Available |
VHF pilot to ground remote control |
