Quality UV Protected Helipad Helideck Elevated Light Touchdown And Lift Off Area factory
Quality UV Protected Helipad Helideck Elevated Light Touchdown And Lift Off Area factory
>

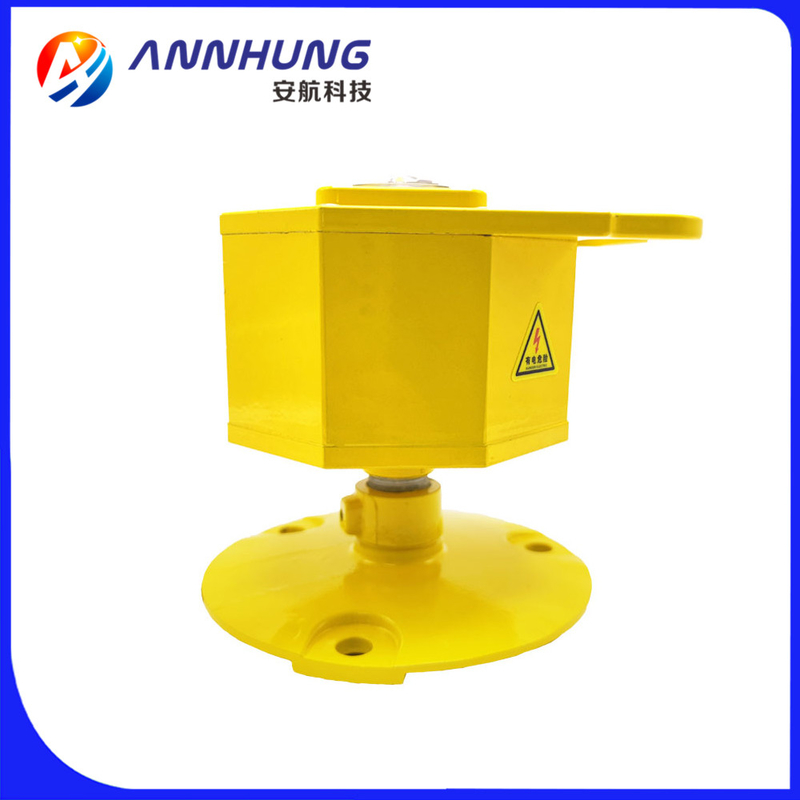

UV Protected Helipad Helideck Elevated Light Touchdown And Lift Off Area

Brand Name: ANNHUNG
Model Number: AH-HP-E-TLOF(L)
Place of Origin: China
Certification: CE
Minimum Order Quantity: 1

Product Details


Available Colors: Green Intensity(cd): ICAO Standard
Flash Characteristics: Steady Burning Body Material: UV Protected Polycarbonate
Base Material: Powder-coated Die-casting Aluminum Waterproof: IP66
Highlight

Helipad Helideck Elevated Light

,

Touchdown Helipad Landing Lights

,

Helipad Landing Lights UV protected

Product Description

UV Protected Helipad Helideck Elevated Light Touchdown And Lift Off Area
Product Specifications
Attribute Value
Available Colors Green
Intensity (cd) ICAO standard
Flash Characteristics Steady burning
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Waterproof IP66
Product Description

AH-HP-E-TLOF(L) Touchdown and lift-off area lighting

AH-HP-E-TLOF(L) Touchdown and lift-off area lighting features a fragile coupling in the base connection for heliports. If an aircraft accidentally hits the light, the base will break immediately to prevent further damage.

Key Features
Electrical
  • High-intensity CREE LED light source reduces power consumption and maintenance (95% less power than equivalent incandescent lights)
  • Power supply options: AC (110-240VAC), DC48V, DC12V (other voltages available)
  • LED power supply board includes short circuit and open circuit protection
Physical
  • Unique glass lens design for converging light
  • Powder-coated bright yellow base enhances visibility
  • Die-cast aluminum base provides strong corrosion resistance and shock/vibration protection
Optional Features
  • Infrared LED for pilot use with NVG (Night Vision Goggles)
  • Controller for power supply and light ON/OFF operation
Applications
  • Surface-level and elevated heliports
  • Helideck shipboard heliports
UV Protected Helipad Helideck Elevated Light
Technical Parameters
Description Parameter
Light Source LED
Flash Characteristics Steady burning
Operation Mode 24 hours operation
LED Life Experience (hours) >100,000
Operating Voltage DC48V and AC (110-240VAC), DC12V
Power (W) 5W
Mounting 140×140×θ12
Dimension (mm) 190×165×166
Weight (kg) 1.9
Ambient Temperature (℃) -55~70
Humidity 10~90%
Wind Speed 80m/s
Waterproof IP66
Options Available VHF Pilot to Ground Remote Control
Manufacturer Information

Anhang Technology is a specialized enterprise focusing on research, production, sales, and after-sales service of aviation obstruction lights, aircraft warning lights, helipad lighting, solar airfield lights, and marine navigation lanterns.

Our factory, located in Shenzhen City, China, has over 10 years of manufacturing experience serving clients worldwide. Our patented products have passed CE, ICAO, ISO9001 certifications and comply with standards of ICAO, FAA, CAAC, and IALA.

We hold eight software copyrights, nine design patents, and two utility model patents. Our products are used in civil airports, helipads, communication towers, factories, power plants, television towers, ports, bridges, high-rise buildings, and sea buoys.

We incorporate advanced technologies including LED, solar power, GSM monitoring, GPS synchronization, Bluetooth, and wireless remote control. All materials are UV protected and anti-corrosive with minimum waterproof rating of IP65 for long-term outdoor use.

Product Highlights

UV Protected Helipad Helideck Elevated Light Touchdown And Lift Off Area Product Specifications Attribute Value Available Colors Green Intensity (cd) ICAO standard Flash Characteristics Steady burning Body Material UV protected Polycarbonate Base Material Powder-coated Die-casting aluminum ...
