LED Dual White Red Medium Intensity Aviation Obstruction Light UV Protection Powder Coated
Product Details
| Light Source: | LED | Available Colors: | Red(At Night), White(Daytime) |
|---|---|---|---|
| Intensity(cd): | ≥2000cd(Night), ≥20000cd(Daytime) | Instantaneous Power(W): | 40W (Red Mode)+600W(White Mode) |
| Average Power(W): | 5W(20fpm, Red Mode) + 13W(20fpm, White Mode) | Weight(kg): | 2.5 + 3.5 |
| Highlight |
Aviation Obstruction Light Polycarbonate body,UV Protection Aviation Obstruction Light,White Red LED Aviation Obstruction Light |
||
Product Description

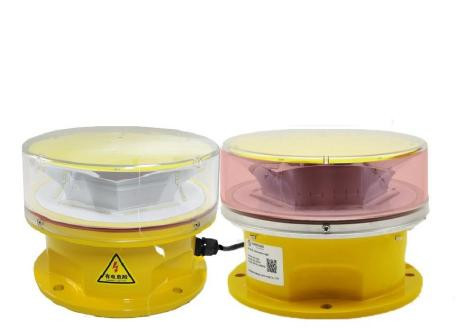

This LED Dual White & Red Medium-intensity Aviation Obstruction Light emit red color at night, emit white color at daytime. It’s designed for marking top of obstacle which height is more than 45meters.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type A / B / C Obstruction Light
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards
Features
Electrical
Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)
Physical
UV protection Powder coated bright yellow color base make better visibility
System design
Built-in photocell for day/night operation(dusk to dawn operation)
Optional
Other Flashing rate(20, 30, 40, 60, Steady mode)
Infrared LED for pilot using NVG
IOT monitoring
Application
Dual medium-intensity light is used on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the obstacle height is 45-105meter, and most time work with low intensity lights installed on the lower place.
