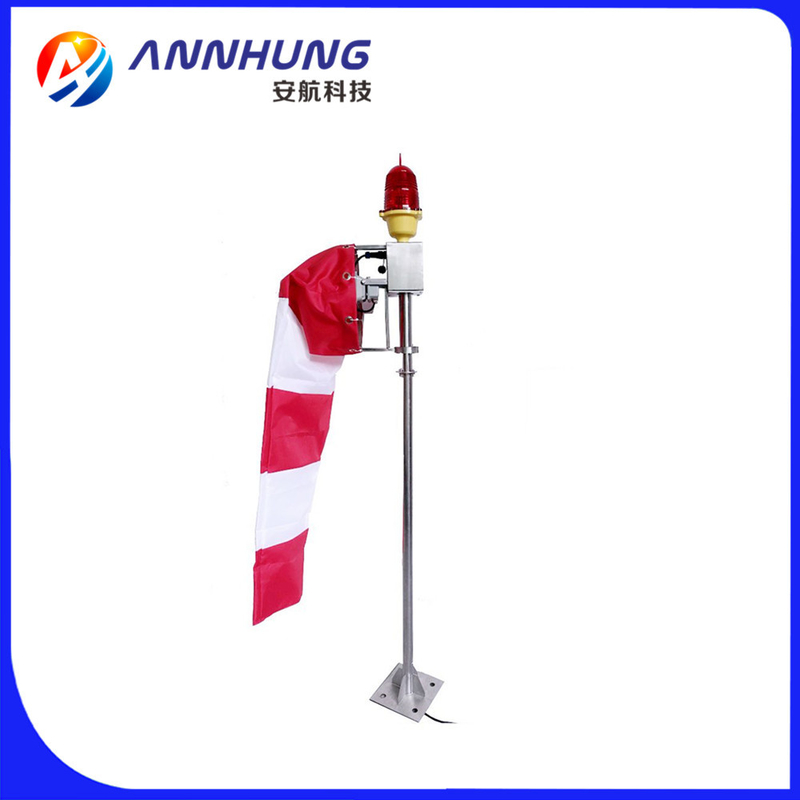

Internally Illuminated Heliport Wind Cone Windsock IP65 Stainless Steel 304 Pole
Product Details
| Ambient Temperature(℃): | -55~70 | Humidity: | 0~95% |
|---|---|---|---|
| Wind Speed: | 80m/s | Waterproof: | IP65 |
| Highlight |
Heliport Wind Cone IP65,obstruction light Heliport Wind Cone,Frangible coupling Heliport Windsock |
||
Product Description
AH-HP-W1 Internally Illuminated Heliport Wind Cone
An aerodrome shall be equipped with at least one wind cone as wind direction indicator.
The flood light for illumination is inside wind sock, it will rotate together with windsock too.
One obstruction light on top for aircraft warning.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.1.1
FAA AC 150/5390-2B Heliport Design Guide
Features
Power supply available in DC(12-48VDC) or AC(110-240VAC)
Pole is made of corrosion resistance and wind resistance stainless steel 304(SS316 is optional)
One obstruction light on top, one flood light for illumination
Pole height is customized(1meter, 2meter, 2.5m, 3m, 4m, 5m...)
Windsock color is: orange(Nylon), red/white(PVC)
Windsock dimension:
Pole height:＜4m, Length: 1.2m, big diameter: 300mm, small diameter: 150mm
Pole height: 4m-6m, Length: 2.4m, big diameter: 600mm, small diameter: 300mm
Pole height: ＞6m, Length: 3.6m, big diameter: 900mm, small diameter: 450mm
Other size is customized.
Frangible coupling is optional
Optional: 3 Metllaic cord for ground fixation at 120°space
Optional: Extra movable part of the base to be rotated to 90°to lower the windsock for maintenance
