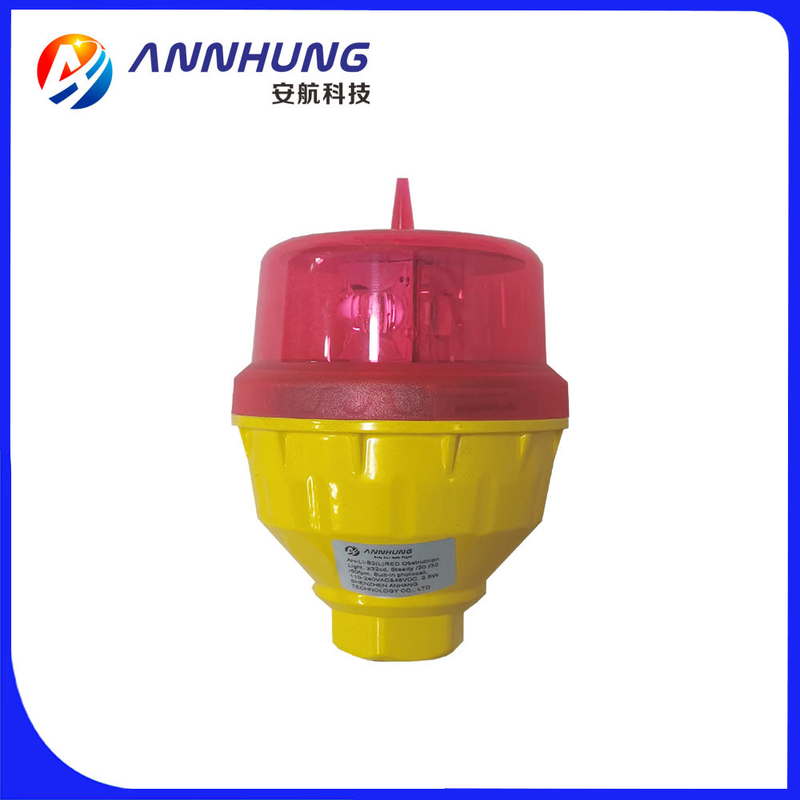

Red Low Intensity Obstacle Light L810 Single Aviation Obstruction Light

This Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstacle Light

CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards

Features

Electrical

Power supply in DC(48V)& AC(110-240VAC), the light could work normally when input 48VDC/110VAC/240VAC

LED power supply board includes short circuit and open circuit protection, Line surge protection by metal oxide varistor

Physical

Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

3/4inch thread hole make pole installation easy

No screw fix type - just twist, the cover will be fixed tightly

System design

Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance ＜50cd/㎡

Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB

Application

AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.

l When obstacle object is higher than 45m, AH-LI-B2 can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.
