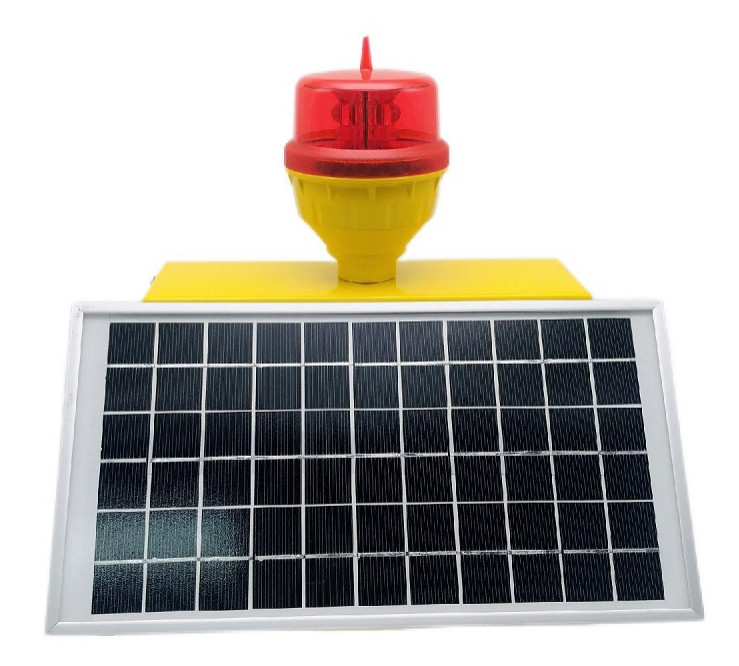

Solar Powered Low Intensity Single Aviation Obstruction Light FAA L-810 Steady

This solar Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.

Compliance

ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstacle Light

FAA L-810

CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013 Aerodrome technical standards

Features

Electrical

3 high power CREE LED, make sure LED keep bright while use

Physical

Bird deterrent spike on top

Unique designed PMMA lens for converging light and good transparency

High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing

UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments

System design

Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance ＜50cd/㎡

Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB

Surge and lightning protection

Application

l AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.

l When obstacle object is higher than 45m, AH-LI-B2 can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.
