Low Intensity Double Aviation Obstruction Light Solar Powered Polycarbonate Body
Product Details
| Body Material: | Polycarbonate | Base Material: | Die-casting Aluminum |
|---|---|---|---|
| Ambient Temperature(℃): | -40~75 | Storage Temperature(℃): | -55~70 |
| Highlight |
Low intensity Double Aviation Obstruction Light,Polycarbonate Body double obstruction light,Solar Powered double obstruction light |
||
Product Description

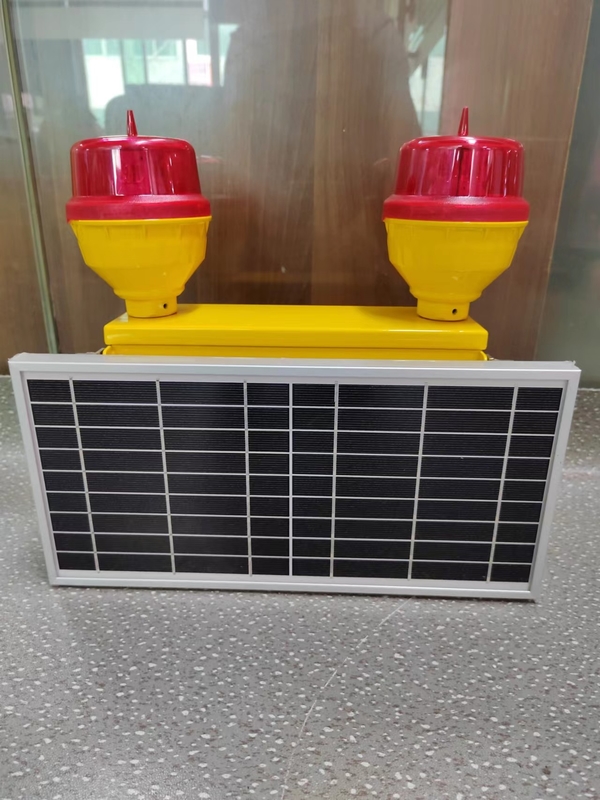

AH-LI-B2 Solar Powered Low-intensity Double Aviation Obstruction Light
This solar Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height. Main-standby mode ensure the obstacle is always marked even one light fail. There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure it could get the most sunlight in different area.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low Intensity Type A / B / E Obstacle Light
FAA L-810
Electrical
3 high power CREE LED, make sure LED keep bright while use
Physical
Bird deterrent spike on top
Unique designed PMMA lens for converging light and good transparency
Solar panel vertical degree is adjustable
System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance ＜50cd/㎡
Main-standby mode, when the main light fail, the standby light automatically switch on.
Application
Low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than 45m.
When obstacle object is higher than 45m, AH-LI-B2 can be used with Medium-intensity or high-intensity obstruction light to indicate hazardous obstructions with a steady red safety light.
Company Information
Anhang Technology is a speciallized enterprise focusing on reseach, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China and have more than 10 years manufacturing experience for clients from whole world. Our products are patented and also have passed CE, ICAO, ISO9001, etc. All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO ( International Civil Aviation Organization), FAA (Federal Aviation Administration), CAAC ( Civil Aviation Administration of China ). All marine navigation lanterns are fully complied with standards of IALA (International Association of Lighthouse Authorities). Till now, we’ve got eight software copyright, nine design patent and two utility model patent.
Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc. Advanced technolgy like LED(light-emitting diode), Solar Clean Power, GSM SIM Card Monitoring, GPS Time Synchronization technology, Blutooth, Wireless Remote Control and etc. applied in our products. All material are UV protected and anti-corrosion and the lowest water proof is IP65 which is to make sure lights could be used outside for long time.
Product Highlights
AH-LI-B2 Solar Powered Low-intensity Double Aviation Obstruction Light This solar Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height. Main-standby mode ensure the obstacle is always marked even one light fail...
120lm/W Heliport LED Flood Light White Color 110-240VAC Steady Burning
LED Surface Heliport Flood Light is used for illuminate the whole heliport area at night. It is specially designed for helipads, providing glare-free, uniform surface lighting for landing and loading activities. LED Surface Floodlights improve pilot depth perception by reflecting the surface of the ...
IP66 HAPI Polycarbonate 9000cd Helipad Landing Lights
The Helicopter Approach Path Indicator - HAPI system consists of a single lighting to provide a visual indication of the correct approaching path of the helicopter. The HAPI uses patented, LED-based optics to achieve the lowest power consumption, highest intensity and sharpest green/red transition. ...
FATO Solar Airfield Light Steady Burning Runway Edge Light White Blue Red Green Colors
AH-SA-A Serial Solar Airfield Light AH-SA-A Serial Solar Airfield Light is specially used on permanent airport/heliport where cable power is not convenient or temporary airdrome. It could be used as Runway Edge Light, Taxiway Light, Threshold/End Light, Heliport Beacon, Low intensity Aviation ...
Double Obstruction Aircraft Warning Light Low Intensity L810 Aviation
AH-LI-B2 LED Low-intensity L810 Double Aviation Obstruction Light Application AH-LI-B2 low-intensity light could be used alone on the top of the High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc when the height is lower than ...
