Product Introduction

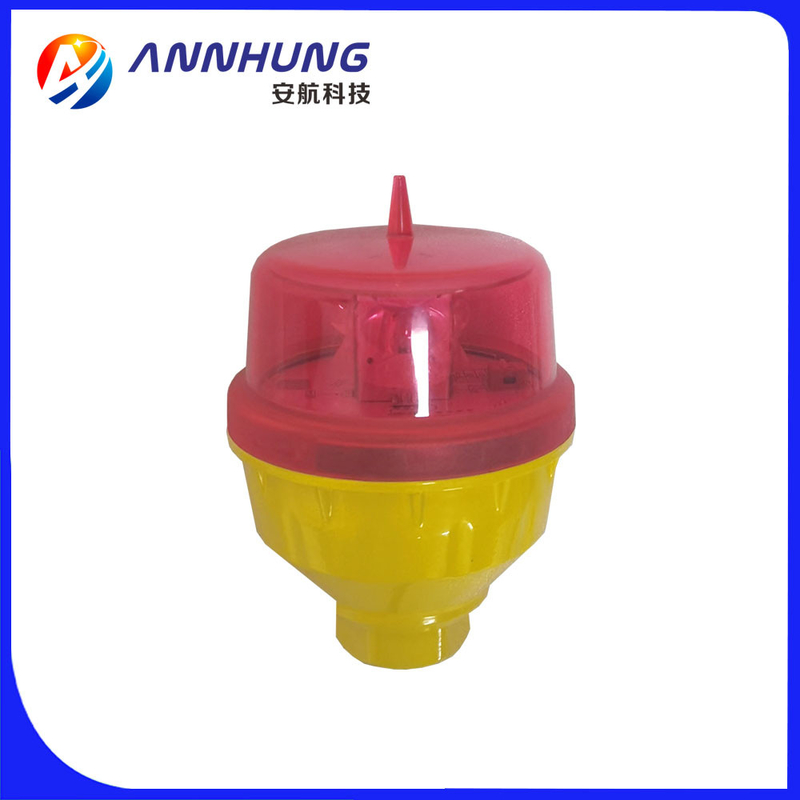

This Low-intensity light is a steady burning aviation
obstruction light designed for marking top of obstacle that
do not exceed 45 meters in height.
Compliance
ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Low
Intensity Type A / B / E Obstacle Light
FAA L-810
CAAC MH6012-2015 Aviation obstruction light, MH 5001—2013
Aerodrome technical standards
Electrical
3 high power CREE LED, make sure LED keep bright while use Power supply in DC(48V)& AC(110-240VAC), the light could work
normally when input 48VDC/110VAC/240VAC LED power supply board includes short circuit and open circuit protection, Line surge protection by metal oxide varistor
Physical
Bird deterrent spike on top Unique designed PMMA lens for converging light and good
transparency High translucency and anti-UV polycarbonate cover could use 3-5years without yellowing
UV protection Powder coated bright yellow color base make better visibility and also long life in harsh environments
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
3/4inch thread hole make pole installation easy No screw fix type - just twist, the cover will be fixed tightly
System design
Built-in photocell for day/night operation(dusk to dawn operation, automatically turn on when background luminance ＜50cd/㎡
Steady(factory setting)/20FPM/30FPM/60FPM DIP switches on PCB Surge and lightning protection
Optional
Alarm contact(NO COM NC)for remote monitoring
Infrared LED for pilot using NVG
GPS sync flashing
|
Light Source
|
LED
|
|
Body Material
|
Polycarbonate
|
|
Product Life Expectancy
|
10 years Plus
|
|
Waterproof
|
IP66
|
