Quality Faa Iala Led Marine Navigation Lanterns IP 68 factory
<
Quality Faa Iala Led Marine Navigation Lanterns IP 68 factory
>

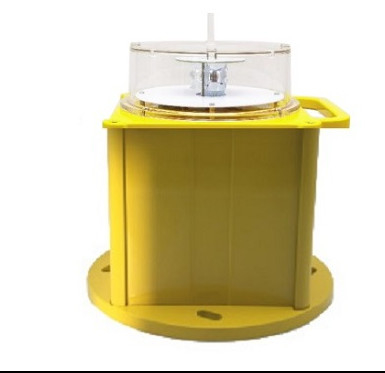

Faa Iala Led Marine Navigation Lanterns IP 68

Brand Name: Annhumg
Model Number: AH-LS-P3
Place of Origin: China
Certification: FAA
Minimum Order Quantity: 1
Price: CN¥4,037.70 - CN¥4,703.93
Supply Ability: 1000 Piece/Pieces per Month
Tags

portfolio landscape lighting

perimeter lighting products

helicopter landing lights

Product Details

Light Source: LED AIP Rating: IP68
Flash Characteristics: Steady Burning LED Life Experience(hours): >100,000
Beam Angle(°): 360 Operation Mode: 24hours Operation
Highlight

faa led marine navigation

,

led marine navigation lanterns

,

ip68 led marine navigation

Product Description

Product Description
Specification
SPECIFICATIONS
AH-LS-P3 LED Marine Navigation Lanterns
Light Characteristics

Light Source
Ultra high intensity LED
Available Colors
Red, Green, Yellow, White, Blue
Visible Range(NM)
Up to 16NM (AT@0.74)
Horizontal Output(degrees)
360
Vertical Divergence(degrees)
≥10°or ≥5°
Flash Characteristics
Adjustable 366 light characters(others optional)
Operation Mode
Dusk-to-dawn Automatically (Built-in photocell)
LED Life Experience(hours)
>100,000
Electrical Characteristics

Operating Voltage
110-240VAC, 12VDC, 48VDC or others
Circuit Protection
Integrated
Physical Characteristics

Body Material
UV protected Polycarbonate
Base Material
Powder-coated Die-casting aluminum
Mounting(mm)
200×200×M10
Dimension(mm)
250×250×270
Weight(kg)
3.5
Product Life Expectancy
More than 10 years
Environmental Factors

Humidity
0~100%
Wind Speed
80m/s
Waterproof
IP68
Compliance

IALA
Signal colors compliance to IALA E-200-1
Options Available


GSM Monitoring

GPS sync flashing

RS232 port

Solar panel & battery

Light intensity adjustable



Faa Iala Led Marine Navigation Lanterns IP 68

Packing & Delivery
Faa Iala Led Marine Navigation Lanterns IP 68
Plastic bag with paper carton.
Company Profile
Faa Iala Led Marine Navigation Lanterns IP 68
ShenZhen Anhang Technology Company Limited is a high technology enterprise engaging in research, development, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world. Our corporate motto is "Good quality, Best service, Customer First, Harmony & Win-Win". We strive to make green and environmental friendly aviation lights as our mission. We take advantage of our superior technology and innovations to make green and energy-saving LED Aviation Obstruction Light,Helipad Light and Marine Lanterns replacing the traditional xenon tube lights or Incandescent lamp. Our aim is to become the toppest player in domestic industry. We are also willing to seek more partners to expand our domestic and global market share.
FAQ
Faa Iala Led Marine Navigation Lanterns IP 68

Product Highlights

Product Description Specification SPECIFICATIONS AH-LS-P3 LED Marine Navigation Lanterns Light Characteristics Light Source Ultra high intensity LED Available Colors Red, Green, Yellow, White, Blue Visible Range(NM) Up to 16NM (AT@0.74) Horizontal Output(degrees) 360 Vertical Divergence(degrees) ≥10...
