Quality LED Low-intensity L810 Double Aviation Obstruction Light factory
<
Quality LED Low-intensity L810 Double Aviation Obstruction Light factory
>

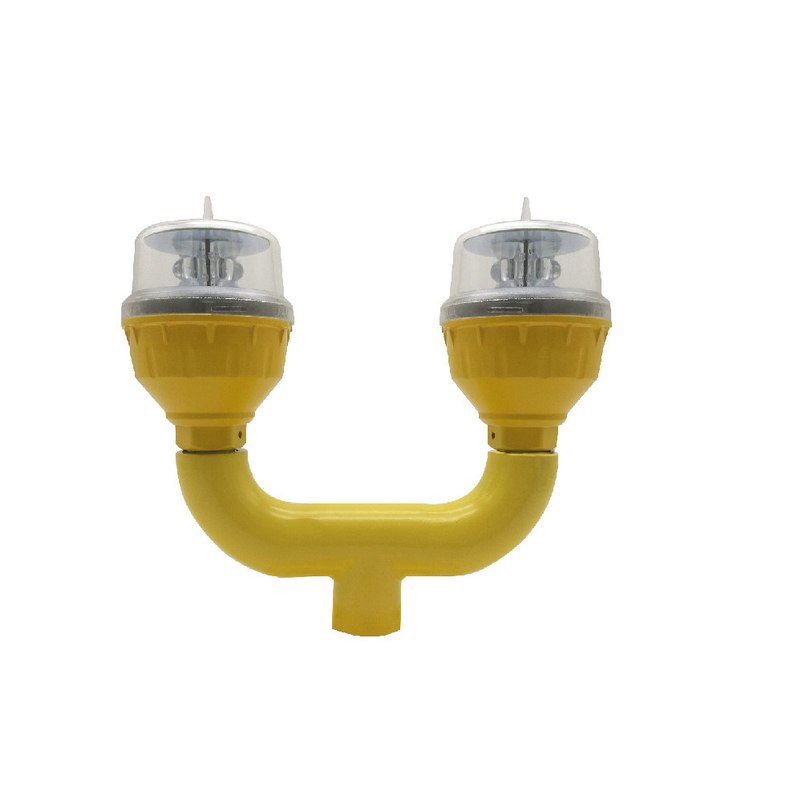

LED Low-intensity L810 Double Aviation Obstruction Light

Brand Name: Annhumg
Model Number: AH-LI-D2
Place of Origin: China
Certification: FAA
Minimum Order Quantity: 1
Price: $269.00 - $329.00
Supply Ability: 1000 Piece/Pieces per Month
Tags

tower warning lights

airplane warning lights

emergency led lights

Product Details

Light Source: LED AIP Rating: IP68
OLamb Body Material: UV Protected Polycarbonate LED Life Experience(hours): >100,000
Operating Voltage: DC 12V (Solar Powered Way) Battery Type: Lithium Ion Battery
Highlight

ip68 led aviation obstruction light

,

airfield led aviation obstruction light

,

ip68 airfield obstruction lights

Product Description

Product Description
LED Low-intensity L810 Double Aviation Obstruction Light
Specification
SPECIFICATIONS
AH-LI-D2 LED Low-intensity L810 Double Aviation Obstruction Light
Light Characteristics

Light Source
LED
Available Colors
Red(Other color is optional)
Intensity(cd)
≥32.5cd(type B),others optional(10cd, 100cd,etc)
Horizontal Output(degrees)
360
Vertical Divergence(degrees)
≥10
Flash Characteristics
Steady-burning/20/30/60 adjustable
Working mode
Main & stand by(other modes are optional)
Operation Mode
Dusk-to-dawn Automatically as standard.

24hours operation as option.
LED Life Experience(hours)
>100,000
Electrical Characteristics

Operating Voltage
DC(48VDC) &AC(110-240VAC) or others
Power(W)
5
Lightning surge
IEC61000-4-5 L- N ±3kV
IEC61000-4-5 L- PE ±6kV
IEC61000-4-5 N- PE ±6kV
Electrostatic
IEC61000-4-2 Contact discharge 8kV
Circuit Protection
Integrated
Physical Characteristics

Body Material
Polycarbonate
Base Material
Die-casting aluminum
Mounting()
3/4 inch pipe thread or D140mm×M10*3
Dimension(mm)
254×90×210 or 254×165×250
Weight(kg)
1.5 or 2
Product Life Expectancy
10 years plus
Environmental Factors

Ambient Temperature(℃)
-40~65
Storage temperature(℃)
-55~70
Humidity
10%-95%RH(No condensation)
Wind Speed
240Km/h
Waterproof
IP66
Compliance

ICAO
Annex 14 Volume 1,'Aerodrome Design and

Operations’ Seventh edition July 2016, table 6.3

Low-intensity Type A/B/E Obstacle Light
FAA
L-810
Options Available


Working mode

NVG(Night Vision Goggles) compatible LED

GPS sync flashing

Dry contac output
Packing & Delivery
LED Low-intensity L810 Double Aviation Obstruction Light
Plastic bag with paper carton.
Company Profile
LED Low-intensity L810 Double Aviation Obstruction Light
ShenZhen Anhang Technology Company Limited is a high technology enterprise engaging in research, development, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world. Our corporate motto is "Good quality, Best service, Customer First, Harmony & Win-Win". We strive to make green and environmental friendly aviation lights as our mission. We take advantage of our superior technology and innovations to make green and energy-saving LED Aviation Obstruction Light,Helipad Light and Marine Lanterns replacing the traditional xenon tube lights or Incandescent lamp. Our aim is to become the toppest player in domestic industry. We are also willing to seek more partners to expand our domestic and global market share.
FAQ
LED Low-intensity L810 Double Aviation Obstruction Light

Product Highlights

Product Description Specification SPECIFICATIONS AH-LI-D2 LED Low-intensity L810 Double Aviation Obstruction Light Light Characteristics Light Source LED Available Colors Red(Other color is optional) Intensity(cd) ≥32.5cd(type B),others optional(10cd, 100cd,etc) Horizontal Output(degrees) 360 ...
