Led 240VAC Helipad Landing Lights Chapi Heliport Approach Path Indicators
Product Details
| Light Source: | LED | AIP Rating: | IP68 |
|---|---|---|---|
| Flash Characteristics: | Steady Burning | LED Life Experience(hours): | >100,000 |
| BWarranty(Year): | 3-Year | Operation Mode: | 24hours Operation |
| Highlight |
240vac helipad landing lights,led helipad landing lights,helicopter landing pad lights 240vac |
||
Product Description

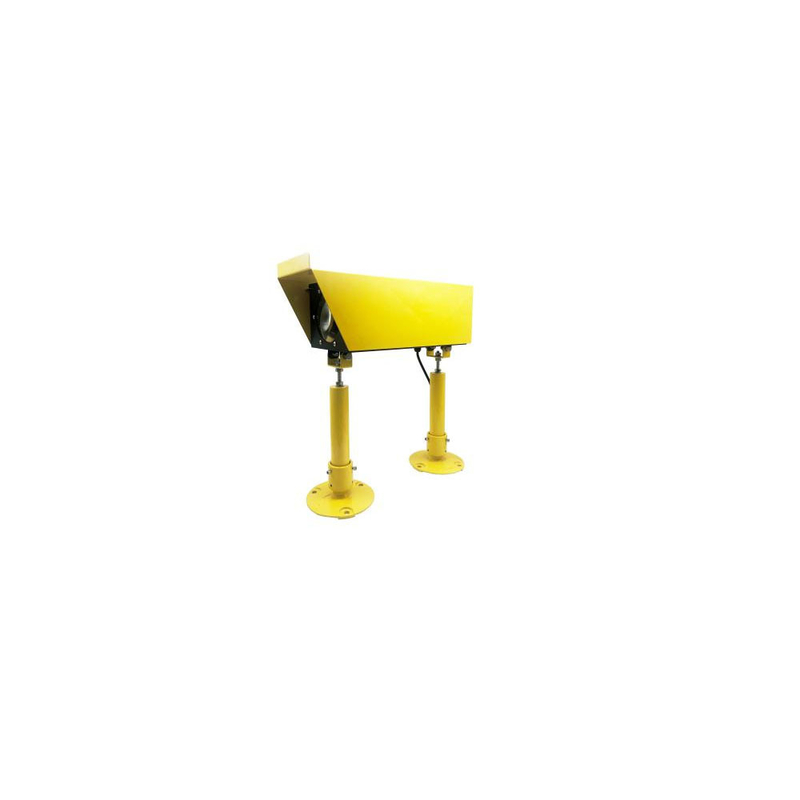

The LED CHAPI Heliport Approach Path Indicators (CHAPI) uses LED technology to provide the pilot with safe and accurate glide slope on final approach to the helipad. A set of two LED CHAPI Light Housing Assemblies (LHAs) are seen by the pilot in combinations of white, green and red to indicate a path that is too high, too low or within the 6° ±0°15' glide slope.
Solar power system is optional for CHAPI.
Compliance
l ICAO Annex 14 Volume I 6th Edition dated 2013 clauses, 5.3.5.28 – 5.3.5.40, Figure A2-23 Appendix 1, 2.1.1
l FAA AC 150/5390-2B Heliport Design Guide
Features
Electrical
l LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
l Power supply available in AC(110, 240VAC), DC48V or others
Physical
l Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
l UV protection Powder coated bright yellow color base make better visibility
l Housing material is stainless steel which has strong corrosion resistance, Shock and Vibrations protection
l Fragile coupling reduce the secondary damage to helicopters effectively
Optional
l Clinometer
l VHF pilot to ground remote control
l Solar power system
l Wireless Remote Control
Application
l Permanent, Temporary, Emergency Helipad/Airport/Helideck
l OFFSHORE/ ONSHORE USAGE
| SPECIFICATIONS | AH-HP-CHAPI LED CHAPI Heliport Approach Path Indicators |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red/Green/White |
| Working mode | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | AC220V |
| LED Power(W) | 50W |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Stainless steel |
| Leg material | Die casting aluminum |
| Mounting | 140x M10 |
| Dimension(mm) | 455x520x184 |
| Weight(kg) |
10
|
| Life Period | ≥10years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-35~80 |
| Humidity | 10~90% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO |
ICAO, Annex 14th, Volume I, 6th Edition dated 2013,AO Annex 14 Volume II –Figure 5-11
|
|
2013, clauses 5.3.5.28 – 5.3.5.40, Figure A2-23
|
|
|
Appendix 1, 2.1.1
|
|
| Options Available | |
| Solar Power system | |
| VHF Pilot to Ground Remote Control | |
| Wireless Remote Control | |
| Clinometer |
