Helipad Landing Lights
>
|
|
| Place of Origin | China |
| Brand Name | Annhumg |
| Certification | FAA |
| Model Number | AH-HP-B2 |

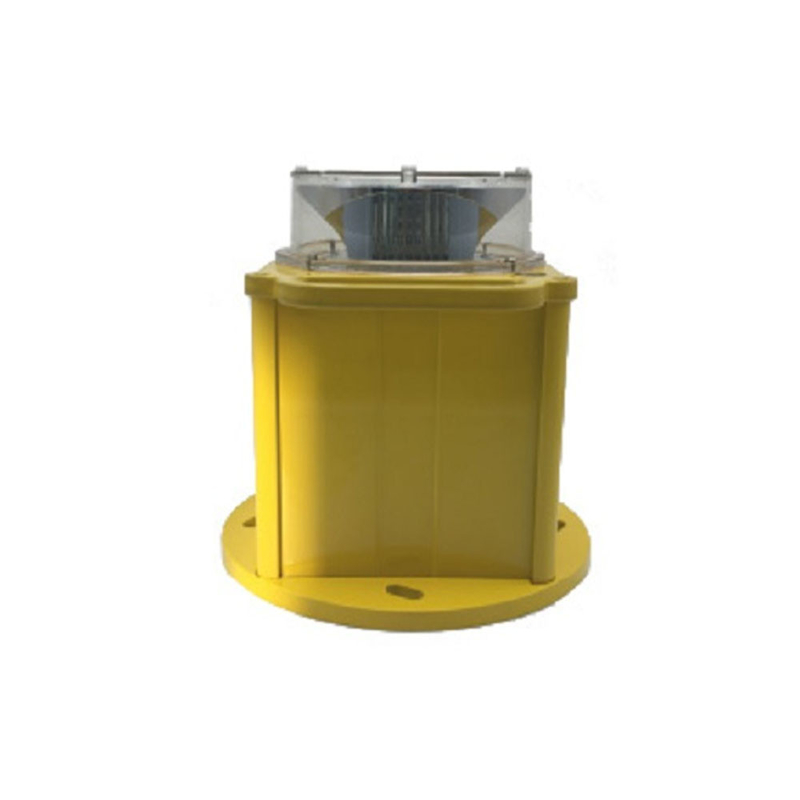

A heliport beacon should be provided at a heliport where long-range visual guidance is considered necessary and is not provided by other visual means; or identification of the heliport is difficult due to surrounding lights.
The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range.
AH-HP-B2 flashes white color 4 times/0.8second and stop for 1.2s, then start new circle for 2seconds(0.8s+1.2s ).
Compliance
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in DC(12, 48VDC) or AC(110-240VAC)
Physical
Clear polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
UV protection Powder coated bright yellow color base make better visibility
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Optional
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Application
Helipad/Heliport/Helideck
| SPECIFICATIONS | AH-HP-B2 LED Heliport Beacon |
| Light Characteristics | |
| Light Source | LED (IR is optional) |
| Available Colors | White |
| Intensity(cd) | ≥2500cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 10 |
| Flash Characteristics | Morse code “H” |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12V, 48V) or AC(110-240VAC) |
| Power(W) | 12 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 200×200×θ12 |
| Dimension(mm) | 250×250×250 |
| Weight(kg) | 3.5 |
| Product Life Expectancy |
≥10years
|
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-35~80 |
| Humidity | 10~90% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| FAA | FAA AC 150/5390-2B Heliport Design Guide |
| Options Available | |
| VHF Pilot to Ground Remote Control | |
| Solar Powered System |
