Helipad Landing Lights
>
|
| Place of Origin | China |
| Brand Name | Annhumg |
| Certification | FAA |
| Model Number | AH-HP-E Serial |

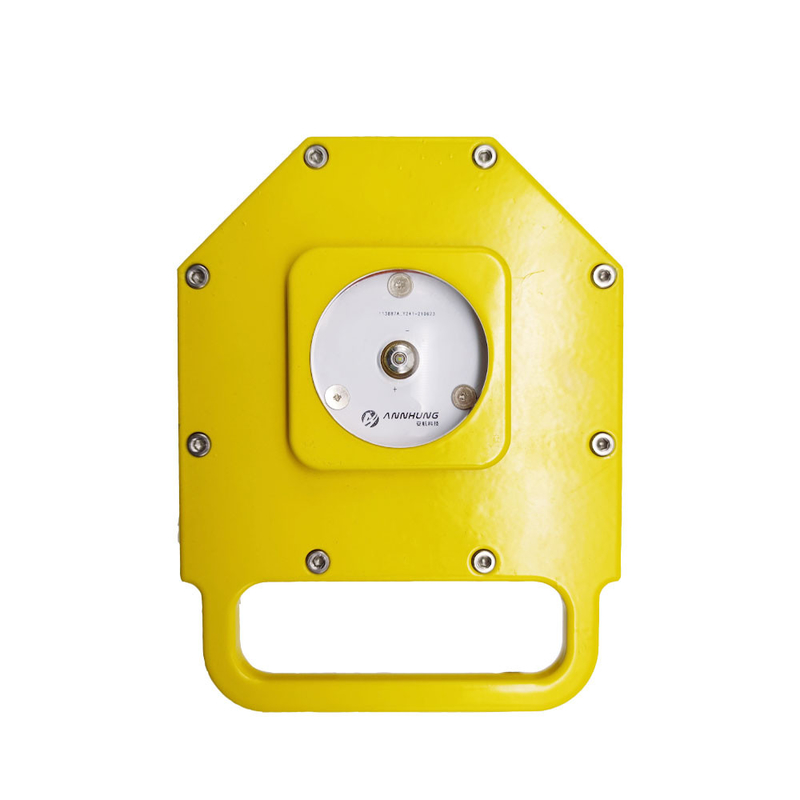

AH-HP-E Serial Heliport Elevated lights should not exceed a height of 25cm for Surface-level and Elevated heliports, not exceed a height of 15 cm for helideck. There is a fragile coupling in the base connection for heliport so if aircraft hit the light by accident, the base will break immediately to avoid more damage.
The lights could be used as FATO light, TLOF lights, Taxiway lights.
Compliance
l FAA AC 150/5390-2B Heliport Design Guide
l CAP 437
Features
Electrical
l High-intensity CREE LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
l Power supply available in AC(110-240VAC) and DC48V, DC12V and other voltage is optional
l LED power supply board includes short circuit and open circuit protection
Physical
l Unique designed Glass lens for converging light
l Powder coated bright yellow color base make better visibility
l Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Optional
l Infrared LED for pilot using NVG(Night Vision Goggles)
l Controller for power supplying and turn ON/OFF light
l VHF pilot to ground remote control
l Light intensity adjustable
Application
l Surface-level and Elevated heliports
l HelideckShipboard heliports
| SPECIFICATIONS | AH-HP-E Serial LED Heliport-Helideck Elevated Light |
| Light Characteristics | |
| Light Source | Ultra high intensity LED |
| Available Colors | Green, Yellow, White, Red, Blue, IR |
| Intensity(cd) | ICAO standard |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ICAO standard |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC48V and AC(110-240VAC), DC12V |
| Power(W) | 5 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 140×140×θ12(Installed on heliport) |
| 112×112×θ12(Installed on helideck) | |
| Dimension(mm) | 190×165×166 (Installed on heliport) |
| 173×133×102(Installed on helideck) | |
| Weight(kg) | 1.9 or 1.5 |
| Product Life Expectancy |
≥10 years
|
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-55~70 |
| Humidity | 10~90% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Compliance | |
| Options Available | |
| Infrared LED compatible for NVG (Night | |
| Vision Goggles) | |
| VHF Pilot to Ground Remote Control | |
| Light intensity adjustable |
