Solar Faa Elevated Runway Guard Lights Quick And Effective Solution To Airfields
Product Details
| Light Source: | LED | AIP Rating: | IP68 |
|---|---|---|---|
| Flash Characteristics: | Steady Burning | LED Life Experience(hours): | >100,000 |
| Beam Angle(°): | 180 | Operation Mode: | 24hours Operation |
| Highlight |
airfields elevated runway guard lights,faa elevated runway guard lights,airfields runway guard lights faa |
||
Product Description

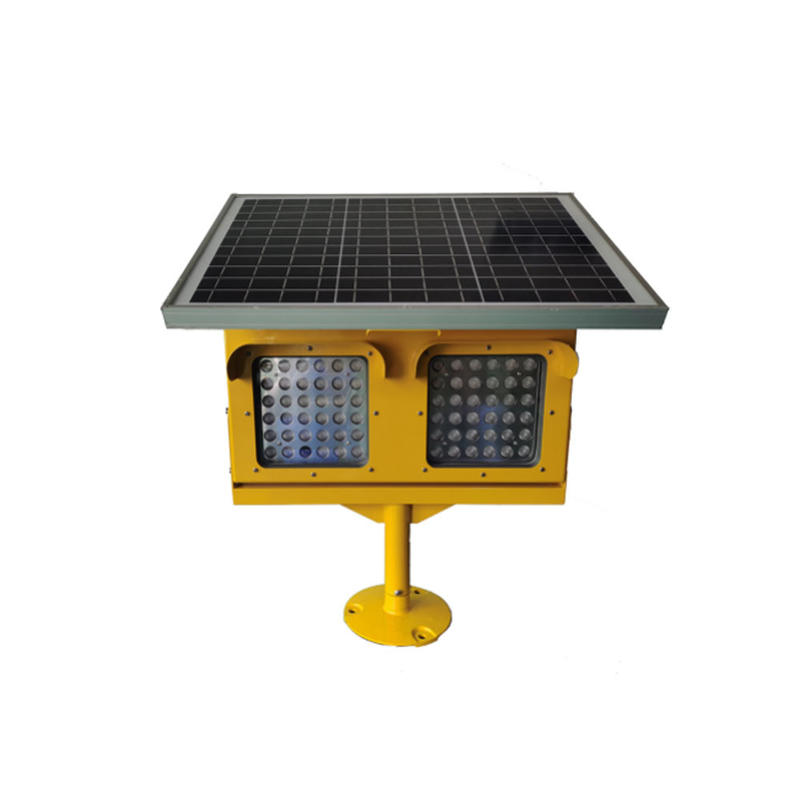

AH-HP-RG-S Solar Runway Guard Light is a self-sustaining, completely autonomous airfield lighting technology, designed for permanent, temporary or portable airfield operations. With its self-contained design, the Solar Powered system eliminates the need for conventional power inputs, expensive infrastructure and daily energy and maintenance costs, while increasing airfield safety 24 hours per day in the most challenging climates around the world.
The AH-HP-RG-S offers a quick and effective solution to airfields, in support of efforts to prevent unnecessary runway incursions and enhance over-all airfield safety. Runway Guard Light is an elevated unidirectional flashing yellow light fixture that provides a distinctive warning to pilots that they are approaching a runway holding position and are about to enter an active runway.
Compliance
l ICAO Annex 14 Volume I
l FAA AC 150/5345
Features
Electrical
l Significant reduction of maintenance costs and re-lamping expenses through long-lasting LED technology- more than 100,000 hours under actual operating conditions
l Very less power could meet the standard intensity request
Physical
l Fragile coupling avoid secondary damage
l Permanent installation for commercial, defense and remote airfields
l Temporary operation during construction, rerouting of taxiways or humanitarian aid
l Rugged, self-contained solar engine with replaceable batteries.
Optional
l Wireless remote operation capabilities
l Extra battery charger from 110-240vac
Application
l Airport,
l Helipad taxiway
l Emergency operations
l Airport/Airdrome
| SPECIFICATIONS | AH-HP-RG-S Solar Runway Guard Light |
| Light Characteristics | |
| Light Source | LED |
| Emitting Color | Yellow, Red/Green (others are optional) |
| Angle(°) | ±30° |
| Working mode | Flashing 50fpm |
| Operation Mode | 24hours, photocell is optional |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 12V |
| Power(W) | 22 |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon,12V/40W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 12V/20AH |
| Battery Service Life | Average 5 years |
| Autonomy | 14 days (without charging) |
| Physical Characteristics | |
| Light Body Material | Aluminum alloy |
| Light Overall size(mm) | 500×347×618 |
| Installation size(mm) | Θ140×θ12 |
| Weight(kg) | 12.55 |
| Product Life Expectancy |
≥10 years
|
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-25~70 |
| Humidity | 10~900% |
| Wind Speed | 80m/s |
| Waterproof | IP66 |
| Optional | |
| Wireless Remote Control | |
| Extral battery charger from 110-240vac | |
