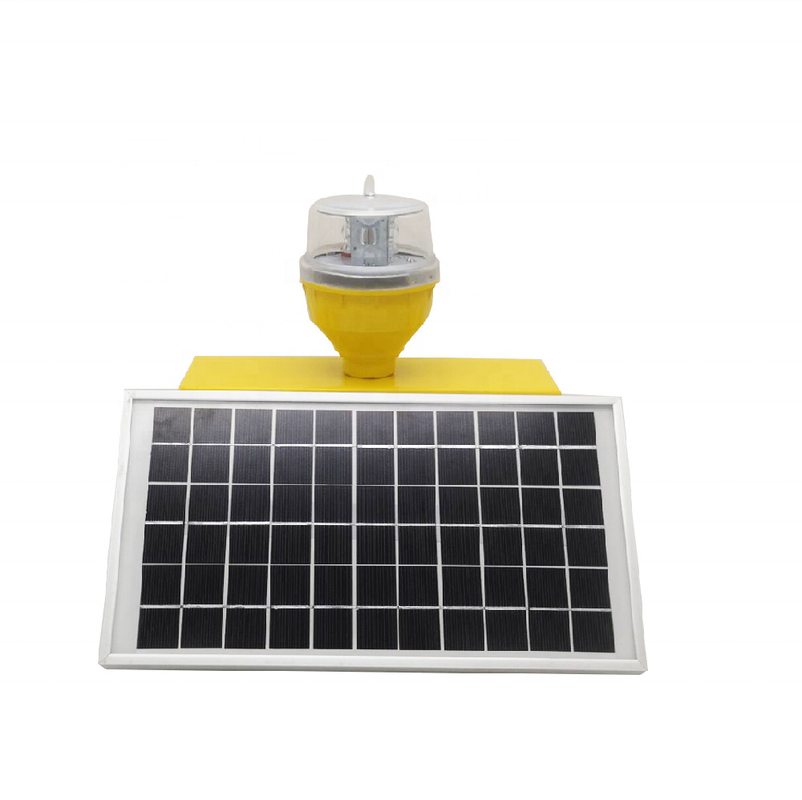

Low Intensity Solar Powered Aviation Obstruction Light System IP68
Product Details
| Beam Angle(°): | 360 | Lamp Luminous Efficiency(lm/w): | 120 |
|---|---|---|---|
| IP Rating: | IP68 | Lamp Body Material: | Aluminum Alloy |
| Light Source: | LED, CREE High Intensity LED | Light Intensity: | ≥ 32.5cd |
| Highlight |
Solar Powered Aviation Obstruction Light System,Low Intensity LED Aviation Obstruction Light,IP68 LED Aviation Obstruction Light |
||
Product Description
Low-intensity Solar Powered Aviation Obstruction Light System
compliant with ICAO,FAA,CAAC
Applications
Scope of Application
AH-LS-A1 Low-intensity Solar Powered Aviation Obstruction Light System can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Main Parameter
| Description | Parameter |
| Mode | AH-LS-A1 |
| Light intensity | ≥ 32.5cd |
| Flash rate | Steady-burning mode or Flashing mode(20-60times/minute) |
| Light source | LED |
| Service life of LED | ≥ 100,000hours |
| Operating voltage |
DC12V(Solar powered Way),recyclable batteries with the lightest environmental and long life. |
| Power consumption | 6W |
| Overall size(mm) | 260 by 300 by 300 |
| Installation size | 3/4inch |
| Vertical degree | ≥ 10° |
| Horizontal degree | 360° |
| Material | |
| Housing | Polycarbonate |
| Base | die casting aluminum |
| Weight | 3Kg |
| Emitting color | Aviation red |
| Ambient temperature | -40℃~+60℃ |
| Wind load | 80m/s |
| Protectionstandard | IP65 |
Function
AH-LS-A1 Low-intensity Single Solar-Powered Aviation Light has one photocell. Installed in the fuse, it can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.
Advantages
1. PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird drop.
3. International advanced solar panel reaching at least 10 years service life.
4. Comprehensive protection in voltage short, over-voltage, floating Charge and temperature.
5. New technology application. Light can work at night automatically by solar panel which function is equal to photocell sensor.
6. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
7. Major Maintenance Cost Saving, Surge protection device inside light.
8. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
9. At least 7 days autonomy (optional 15days)
10. Movable Panel for being convenient for customer choosing angle.
11. 3/4 inches installation way especially for tower or flag-pole installation way.
Compliance
Low-intensity Type A or Type B FAA L-810
Low-intensity Solar-Powered Aviation Obstruction Light ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3
Shenzhen Anhang Technology Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc. Website: www.annhung.com www.ahicao.com
