FAA L864 Solar Powered Aircraft Warning Lights Medium Intensity AH-MS-B3
Product Details
| Beam Angle(°): | 360 | Lamp Luminous Efficiency(lm/w): | 120 |
|---|---|---|---|
| IP Rating: | IP68 | Lamp Body Material: | Aluminum Alloy |
| Light Source: | LED, CREE High Intensity LED | Light Intensity: | 2,000cd ±25% |
| Highlight |
FAA Medium Intensity Aircraft Warning Lights,L864 Solar Powered Aircraft Warning Lights,Aluminum Alloy Aircraft Warning Lights AH-MS-B3 |
||
Product Description

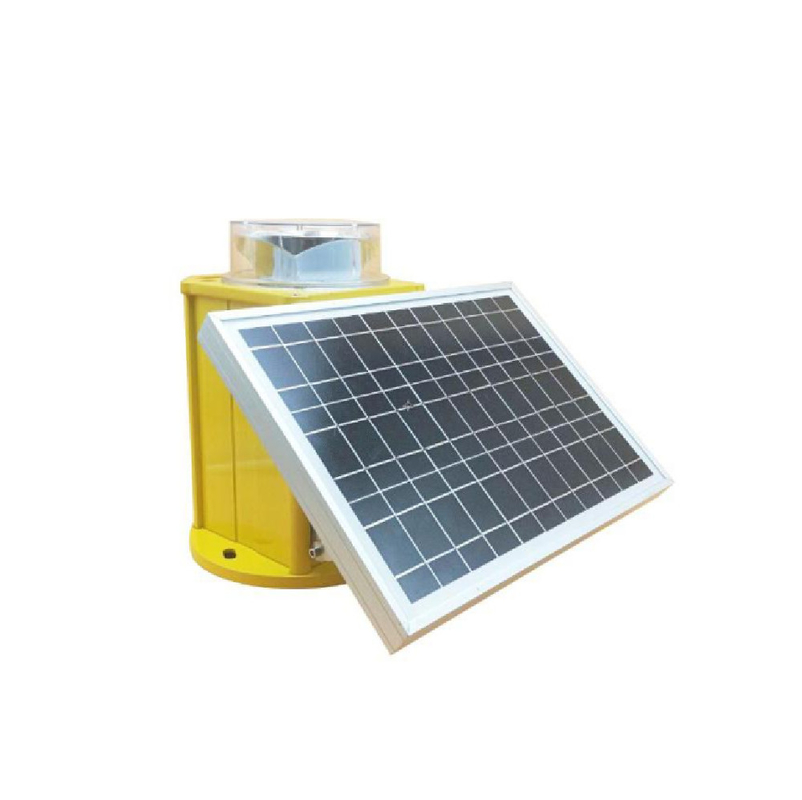

AH-MS-B3 FAA L864 Solar Powered Medium Intensity Aircraft Warning Lights
This Medium-intensity Type B Aviation Obstruction Light flashing RED color, designed for marking top of obstacle which height is between 45 to 105 meters.
CREE Ultra high intensity LED is used as light source which make performance better, and solar panel vertical degree is adjustable(30°) for get as much as sunlight in different area.
Product Description
| SPECIFICATIONS | AH-MI/B-2 Medium-intensity Type B L864 Solar Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | Ultra high intensity CREE LED |
| Emitting Color | Red |
| Intensity(cd) | 2000cd±25%(Night) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥3 |
| Flash Characteristics | Flashing 20-60FPM |
| Operation Mode | Dusk-to-Dawn operation(Solar panel as photocell) |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage(Vdc) | 12 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono crystalline Silicon |
| Output(watts) | 18W |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | 120 |
| Physical Characteristics | |
| Lamb Body Material | UV protected Polycarbonate |
| Base Material | Die casting aluminum |
| Installation Size | 190×190×M10 |
| Overall Size (mm) |
400×260×325 550 |
| Weight(kg) | 7 |
| Product Life Expectancy | Average 3 years |
| Environmental Factors | |
|
Ambient Temperature(℃) -55℃~+70℃ |
-35~80 |
| Humidity | 0~95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Annex 14 Volume 1,'Aerodrome Design and |
| Operations’ Sixth edition July 2013, table 6.3 | |
| Medium-intensity Type A Obstacle Light | |
| FAA | L-864 |
| Optional | |
|
GPS Synchronization
|
|
|
GSM cellphone monitoring
|
|
|
NVG - compatible infrared (IR) LED
|
Function
l AH-MS-B3 solar medium-intensity LED aviation osbtruction light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights light installed on the lower place.
Advantages
1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating charge and temperature.
3. Built-in Solar Panel.
4. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Clean, renewable, green and reliable energy source.
7. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
8. At least 5 days autonomy.
9. Recyclable batteries with the lightest environmental.
10. Small volume especially being suitable for Telecom Tower and Electric installation way.
Compliance
l ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type B Obstruction Light
FAA L-864
Product Application
High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines
Packaging: Plastic bag with Paper carton .
Delivery: In 2-30 days after payment.
Anhang Technology (HK) Company Limited is a high technology enterprise engaging in research, production, sales and after -sales services for a wide range of Aviation Obstruction Light,Aircraft Warning Light,Helipad Light, LED Marine Lanterns,LED Bulb and Aircraft Warning Sphere.We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in Civil Airports, Helipads, Communication Towers, Factory,Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoyage in sea, etc.
All our products are designed and manufactured strictly according to ICAO (International Civil Aviation Organization), FAA (Federal Aviation Administration) and IALA(International Association of Lighthouse Authorities). We are proud to have served customers from all across the world.
