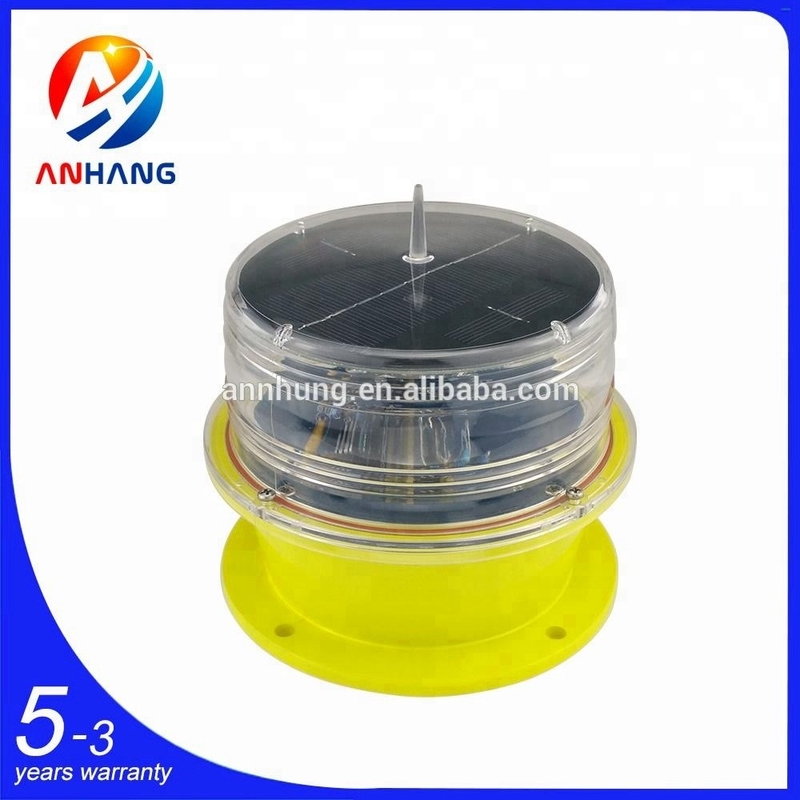

Solar Tower Aircraft Warning Lights / Tower Beacon Light Mono crystalline Silicon
  • Solar Tower Aircraft Warning Lights / Tower Beacon Light Mono crystalline Silicon
  • Solar Tower Aircraft Warning Lights / Tower Beacon Light Mono crystalline Silicon

Solar Tower Aircraft Warning Lights / Tower Beacon Light Mono crystalline Silicon

Place of Origin Shenzhen, China
Brand Name ANNHUNG
Certification FAA , ICAO, CAAC
Model Number AH-LS/L
Product Details
Solar Module Type:
Mono Crystalline Silicon
Available Colors:
Red
Intensity(cd):
≥ 32.5cd(Flash Mode)
Horizontal Output(degrees):
360
Vertical Divergence(degrees):
3
Flash Characteristics:
20-60FPM - Type A
High Light:

Red tower aircraft warning lights

,

Mono crystalline Silicon tower obstruction lighting

,

Type A Solar Tower Aircraft Warning Lights

Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Price
$60.00 - $100.00/
Packaging Details
One piece six sides build in foam carton
Delivery Time
3-15 days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
1000 Pieces per Month
Product Description

Low intensity LED Solar Powered Aviation Light

Aviation light

Solar Aviation Light

Aviation Obstruction light

Solar Powered Aviation Light HOT SALE! Promotion!

Applications



AH-LS/L Low-intensity Solar Powered Aviation Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.





Product Description



Description Parameter
Mode AH-LS/L
Standard ICAO FAA L-810
Visible distance 3.2KM
Working mode Flashing mode or Steady-burning mode
Light source LED
Light intensity >10cd
Vertical degree >10°
Horizontal Degree 360°
Service life of LED 100, 000hours
Operating voltage DC3.2V, recyclable batteries with the lightest environmental and long life
Battery capacity 3.2V, 3.2Ah
Autonomy At least 5days (Option 20days)
Overall Size (mm) Φ162 160
Installation Size Φ140 × M6
Weight 1Kg
Emitting Color Red, Green, Yellow (Amber), Blue or White
Ambient Temperature -55℃~+60℃
Wind load 80m/s
Control Way ON/OFF and photocell. Light can work at night automatically by photocell.



Function

AH-LS/L Low-intensity Single Solar Powered Aviation Light has one photocell. It can work alone automatically at night by photocell when ambient brightness is lower than 500cd/m2 and close during the day.

Hot Sale Promotion AH-LS/L Low intensity LED Solar Powered Aviation Light



Advantages

1.International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating charge and temperature.
3.Built-in Solar Panel.
4. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Clean, renewable, green and reliable energy source.
7. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
8. At least 5 days autonomy.
9. Recyclable batteries with the lightest environmental.

10. Small volume especially being suitable for Telecom Tower and Electric installation way.





Compliance

Low-intensity Type A or Type B FAA L-810 Low-intensity Solar-Powered Aviation Light, ICAO Annex 14 Volume 1,'Aerodrome Design and Operations’ Forth edition July 2004,table6.3

Installation Drawing

Hot Sale Promotion AH-LS/L Low intensity LED Solar Powered Aviation Light
