AH-LS/T Low-intensity L810 Double Solar Aviation Obstruction Light with photocell
  • AH-LS/T Low-intensity L810 Double Solar Aviation Obstruction Light with photocell
  • AH-LS/T Low-intensity L810 Double Solar Aviation Obstruction Light with photocell
  • AH-LS/T Low-intensity L810 Double Solar Aviation Obstruction Light with photocell

AH-LS/T Low-intensity L810 Double Solar Aviation Obstruction Light with photocell

Place of Origin China
Brand Name Annhumg
Certification ICAO
Model Number AH-LS-LD
Document AH-LS-LD LED Low-intensity ...ht.pdf
Product Details
Light Source:
LED
AIP Rating:
IP68
OLamb Body Material:
UV Protected Polycarbonate
LED Life Experience(hours):
>100,000
Operating Voltage:
DC 3.7V (Solar Powered Way)
Battery Type:
Lithium Ion Battery
Highlight:

Photocell Solar Aviation Obstruction Light

,

L810 Solar Aviation Obstruction Light

,

Double Solar Aviation Obstruction Light

Payment & Shipping Terms
Minimum Order Quantity
1
Price
150USD
Packaging Details
1piece in 1 carton
Delivery Time
1-15days
Supply Ability
1000 Piece/Pieces per Month
Product Description
AH-LS/T Low-intensity L810 Double Solar Aviation Obstruction Light with photocell
Product Specifications
Attribute Value
Light Source LED
AIP Rating IP68
Lamb Body Material UV protected Polycarbonate
LED Life Experience (hours) >100,000
Operating Voltage DC 3.7V (Solar powered Way)
Battery type Lithium ion battery
Product Description

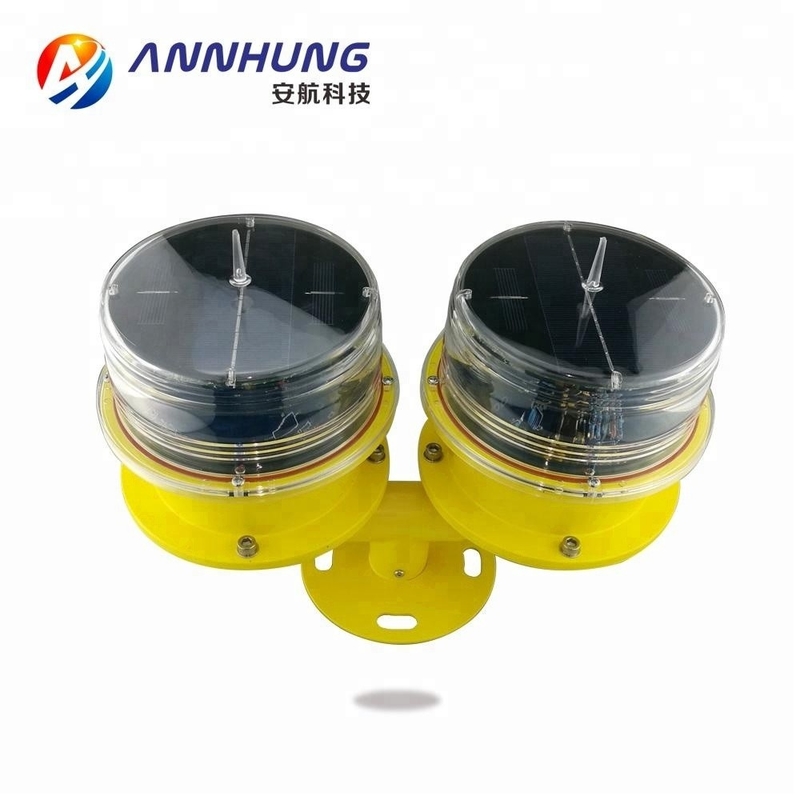

The LED Low-intensity Double Solar Aviation Obstruction Light features an integrated high-efficiency solar panel design, powered by a dedicated lithium-ion battery. The system includes two lamps on separate arms - a main lamp and a standby lamp that automatically activates if the primary lamp fails.
Mounting
3/4inch thread hole under base for secure pole mounting.
Compliance Standards
  • ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Low Intensity Type A/B Obstruction Light
  • FAA L-810
Key Features
Electrical
  • LED light source with >100,000 hours lifespan
Physical
  • Bird needle to prevent bird droppings
  • UV & vibration protected polycarbonate lens
  • Powder coated die-cast aluminum base resistant to weather conditions
  • Built-in mono crystalline silicon solar panel with superior conversion efficiency
System Design
  • Built-in photocell for automatic day/night operation (dusk to dawn mode)
  • Local ON/OFF control button
  • Flashing (20fpm)/steady toggle switch under base
  • Main-standby mode operation
Optional Features
  • GSM cellphone monitoring
  • Infrared LED for Night Vision Goggles (NVG) compatibility
  • Remote control ON/OFF capability
Applications
Designed for installation on high chimneys, telecommunication towers, wind turbines, and other structures without cable power supply or with high lightning protection requirements. Suitable for obstacles with heights less than 45 meters.
AH-LS/T Low-intensity L810 Double Solar Aviation Obstruction Light with photocell 0
Manufacturer Information
Anhang Technology, founded in 2009, is a high-tech enterprise specializing in aviation obstruction lights, aircraft warning lights, helipad lighting, solar airfield lights, and marine navigation lanterns. Based in Shenzhen, China, with over 10 years of manufacturing experience, we hold 42+ patents and international certifications including CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, and ISO45001.
All products comply with ICAO, CAAC, and FAA standards for aviation lighting, and IALA standards for marine navigation lights.
