Low intensity solar obstruction light Solar Warning Light
Product Details
| Light Source: | LED | Available Colors: | Red |
|---|---|---|---|
| Operation Mode: | Dusk-to-dawn Automatically | LED Life Experience(hours): | >100,000 |
| Operating Voltage: | 2V | Battery Type: | Lithium Ion Battery |
| Highlight |
Solar Obstruction Light,Low intensity Solar Warning Light,Solar Warning Light |
||
Product Description
| Light Source | LED |
| Available Colors | Red |
| Operation Mode | Dusk-to-dawn Automatically |
| LED Life Experience (hours) | >100,000 |
| Operating Voltage | 2V |
| Battery type | Lithium ion battery |
Solar aviation obstruction light | 360 degree solar warning light | Solar warning light | Wholesale 360 degree solar warning light | Balizas solar led | Solar tower light

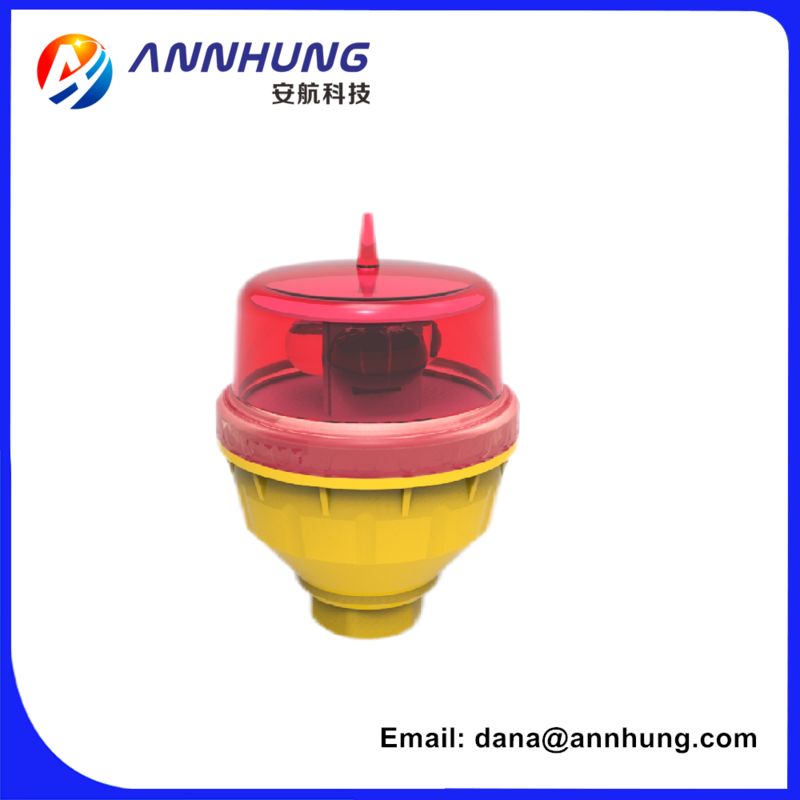

AH-LI-B2 is a self-contained obstruction light which consist of solar panel, battery and lamp. There is no need for external power input. The vertical degree of the solar panel is adjustable to ensure it could get the most sunlight in different area.
It is designed for marking top of obstacle that do not exceed 45 meters in height.
- ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6-1, 6-2 Low Intensity Type A / B /E Obstruction Light
- FAA L-810
- 3 high power CREE LED, make sure LED keep bright while use
- With bird needle to prevent bird drop
- UV & vibrations protected polycarbonate lens for converging light
- Powder coated die casting aluminum base, light fastness, resist snow and rain
- Battery box made of corrosion resistant 304 stainless steel
- Self-contained without external power supply, Cable cost saving & cabling job saving, No wiring job, nice & easy installation
- Solar panel vertical degree is adjustable
- Solar panel as sensor(Photo diode) for day & night working mode (dusk to dawn mode)
- ON/OFF button under base make local control easy
- Steady/Flashing(20fpm) adjustable switch available
- Solar panel angel is adjustable
- Surge and lightning protection
- Infrared LED for pilot using NVG(Night Vision Goggles)
- Stainless steel needle strips for solar panel
AH-LI-B2 solar low-intensity light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection.
Used alone on the top of obstacle which height is less than 45meter.
| Flash Characteristics | Steady/Flashing(20fpm) adjustable |
|---|---|
| Light Source | LED |
| Colors | Red |
| Horizontal Output (degrees) | 360 |
| Vertical Divergence (degrees) | 10 |
| LED Life Experience (hours) | >100,000 |
| Power (W) | 12W |
| Voltage | 12V |
| Circuit Protection | Integrated |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Installation Size | 3/4inch thread hole (standard) |
| Overall Size (mm) | 268×243×300 |
| Weight (kg) | 3 |
| Product Life Expectancy | ≥10 years |
| Ambient Temperature (℃) | -55~70 |
| Humidity | 0~90% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | ICAO Annex 14 Volume |
| Options Available | NVG - compatible infrared (IR) LED |
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our factory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001, etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO (International Civil Aviation Organization), CAAC (Civil Aviation Administration of China), FAA (Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
